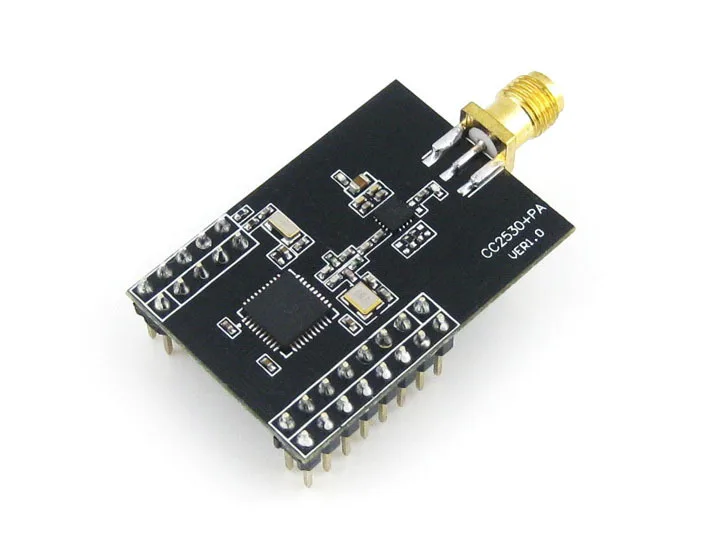

XCore2530 ZigBee Module CC2530F256 2.4GHz Wireless Module Communication Board farther communication distance with PA
sku: 2030732224
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$15.63
Shipping from: China
Technical Details
| Antenna: | 2.4G 2DB 360° omni-directional |
| Brand Name: | Waveshare |
| Demo Board Type: | others |
| Frequency range: | 2.4GHz |
| Model Name: | XCore2530 |
| Model Number: | XCore2530 |
| Onboard chip: | CC2530F256. |
| Operating Temperature: | -40 ~ 85 |
| Pinheader pitc: | 2.54mm |
| Provided firmware: | oordinator and/or Router(preloaded by default) |
| Serial port baud rate: | 38400bps (default) |
| Wide supply-voltage range: | 2 V~3.6 V |
| XCore: | ZigBee module |
