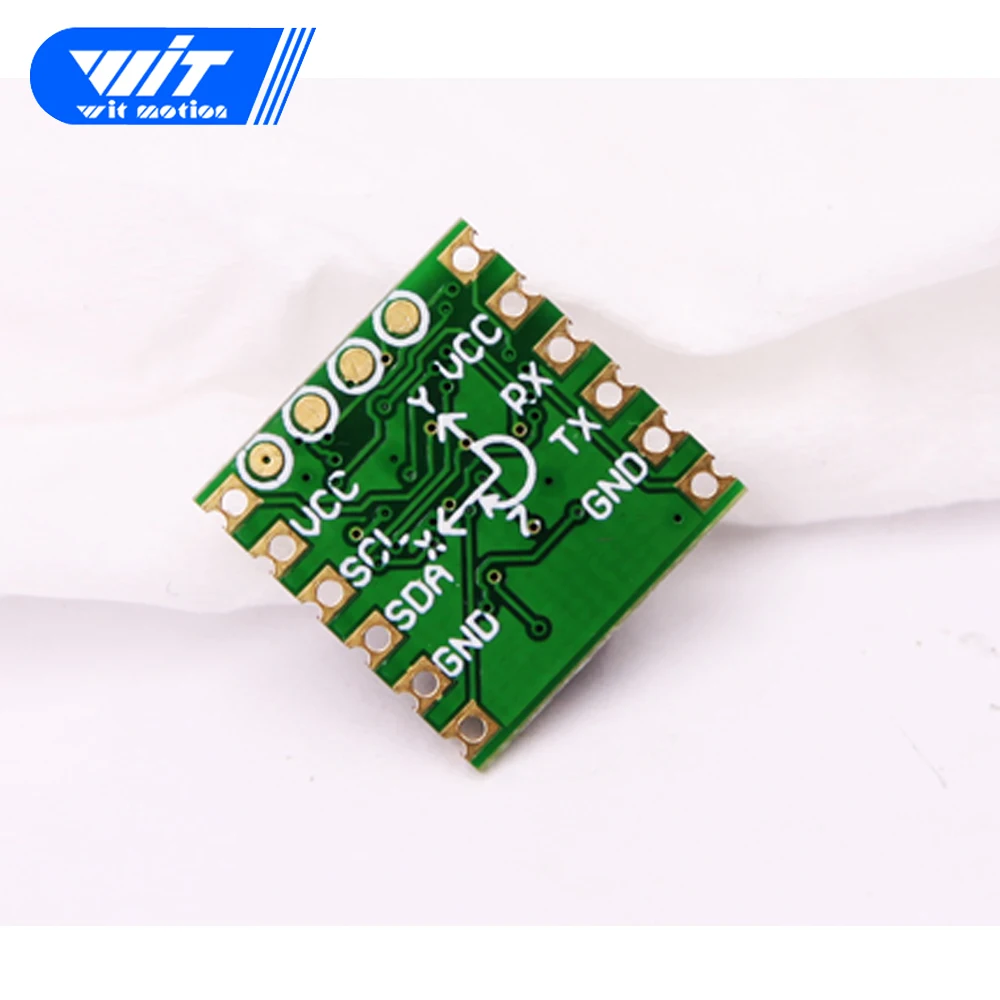

WitMotion HWT31 High-Precision 3 Axis AHRS Tilt Angle Accelerometer Module,Triaxial Acceleration Digital Transducer,for Arduinos
sku: 32997061475
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$48.45
Shipping from: China
Technical Details
| Accuracy: | XY Static: 0.05 degree, Z-axis 1 degree |
| after-sale service: | Lifetime Technical Support |
| Angle accuracy: | Dynamic 0.1 degree |
| Application Age Group: | Adult |
| Brand Name: | WitoMotion |
| Compatibility: | All Compatible |
| Consumption current: | typical 10mA |
| design: | Kalman Filtering |
| Function: | Remote Control |
| Input Voltage: | 3.3V-5V |

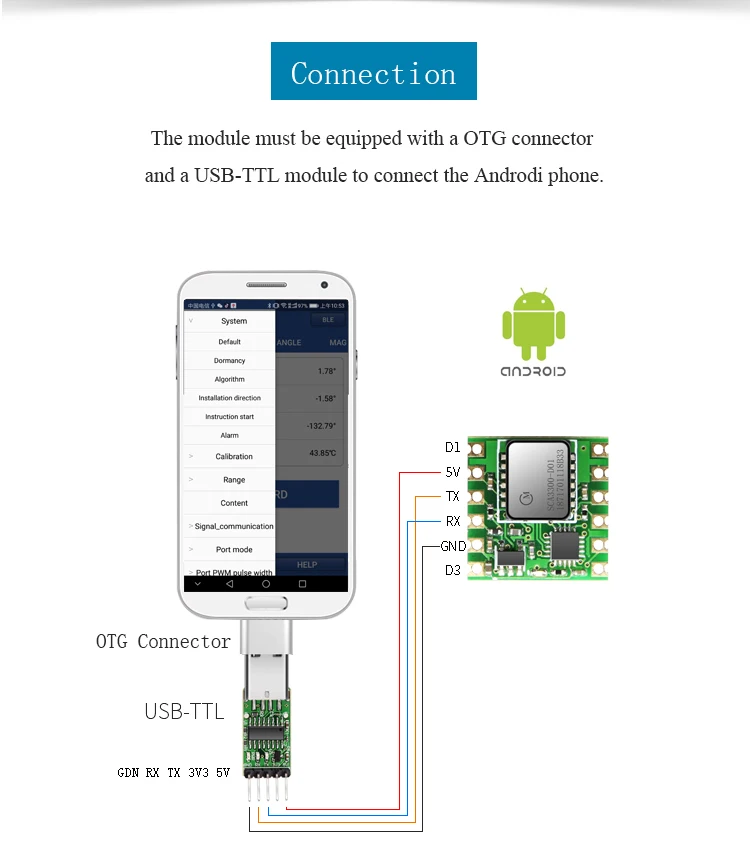

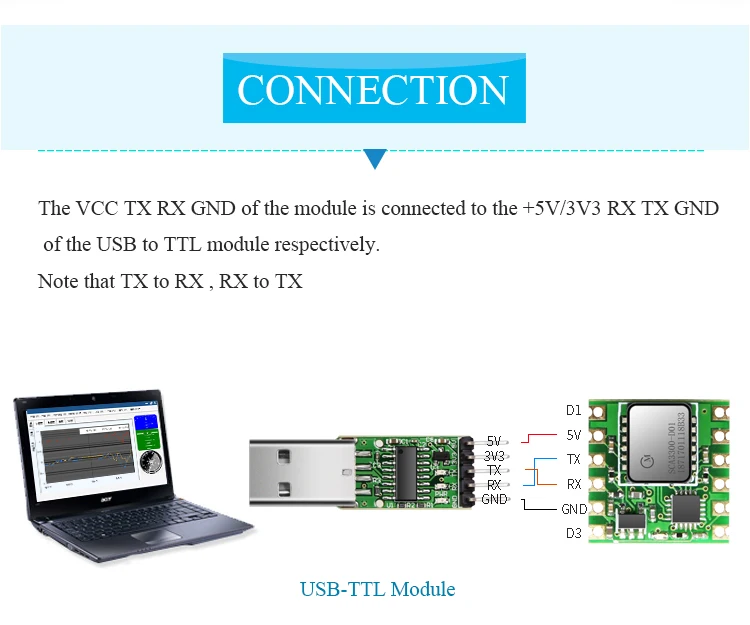

| Interface: | TTL interface |
| Language: | Turkish |
| Measuing: | Thriple-Axis, XYZ, (Roll, Pitch, Yaw) |
| Measurement error: | 0.05 degree |
| Output Data: | Time, Acceleration, Angular Velocity, Angle, Magnet Field |
| Output Frequency: | 0.1hz-100hz |
| Size: | 15.24mm X 15.24mm X 2mm |
| Type: | Wearable |
