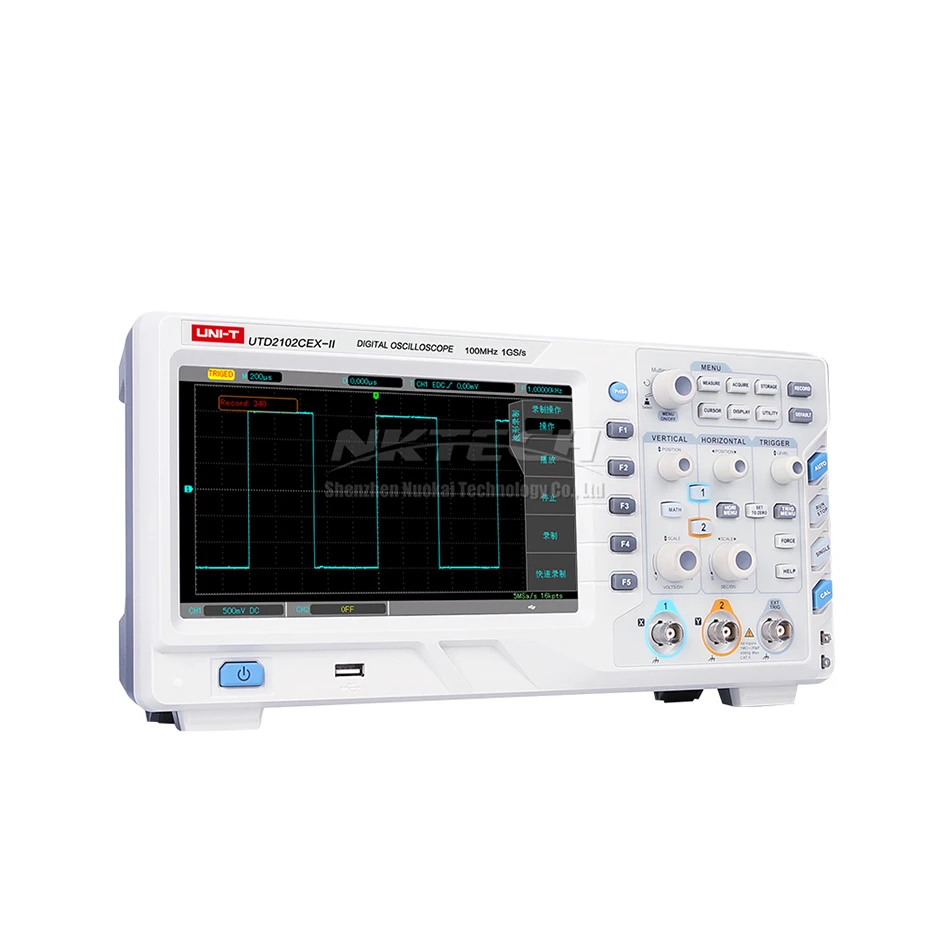

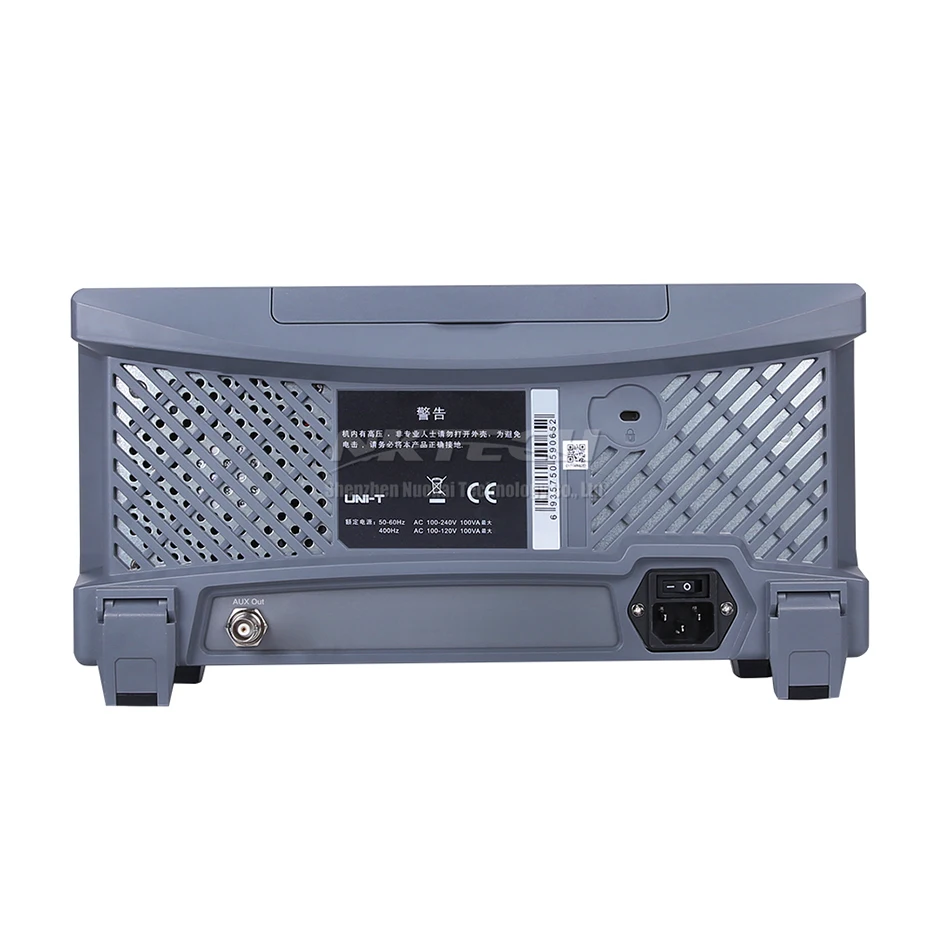

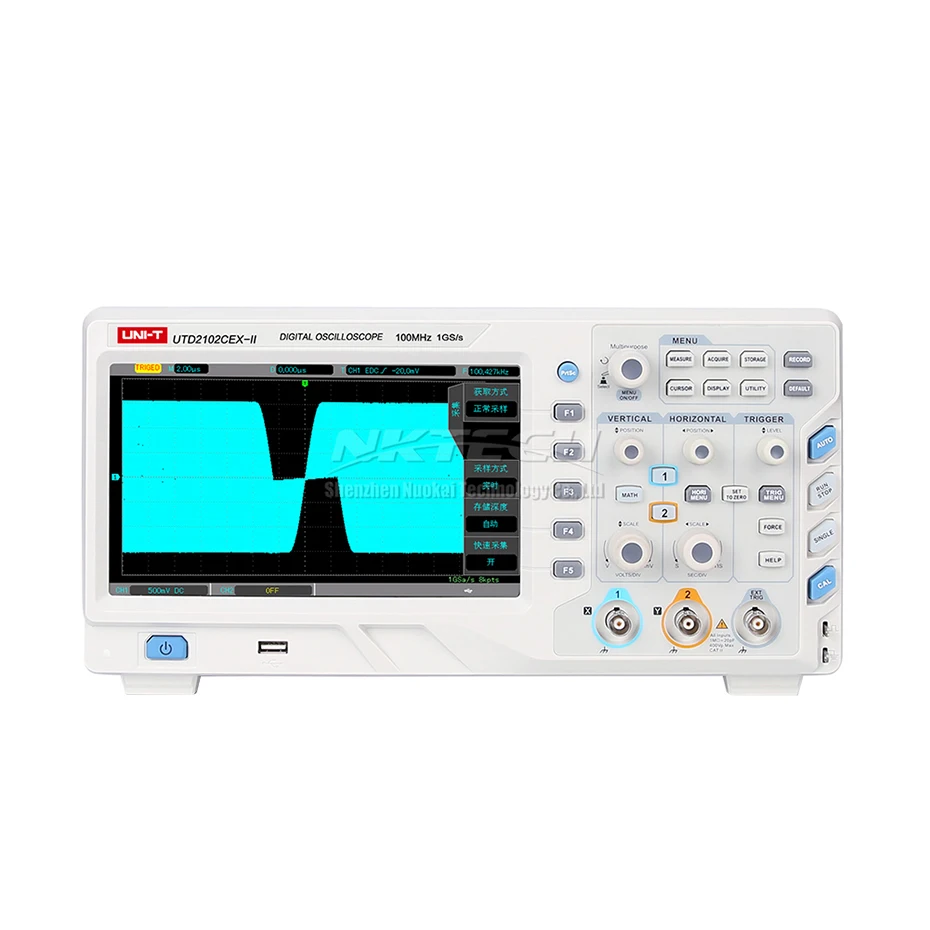

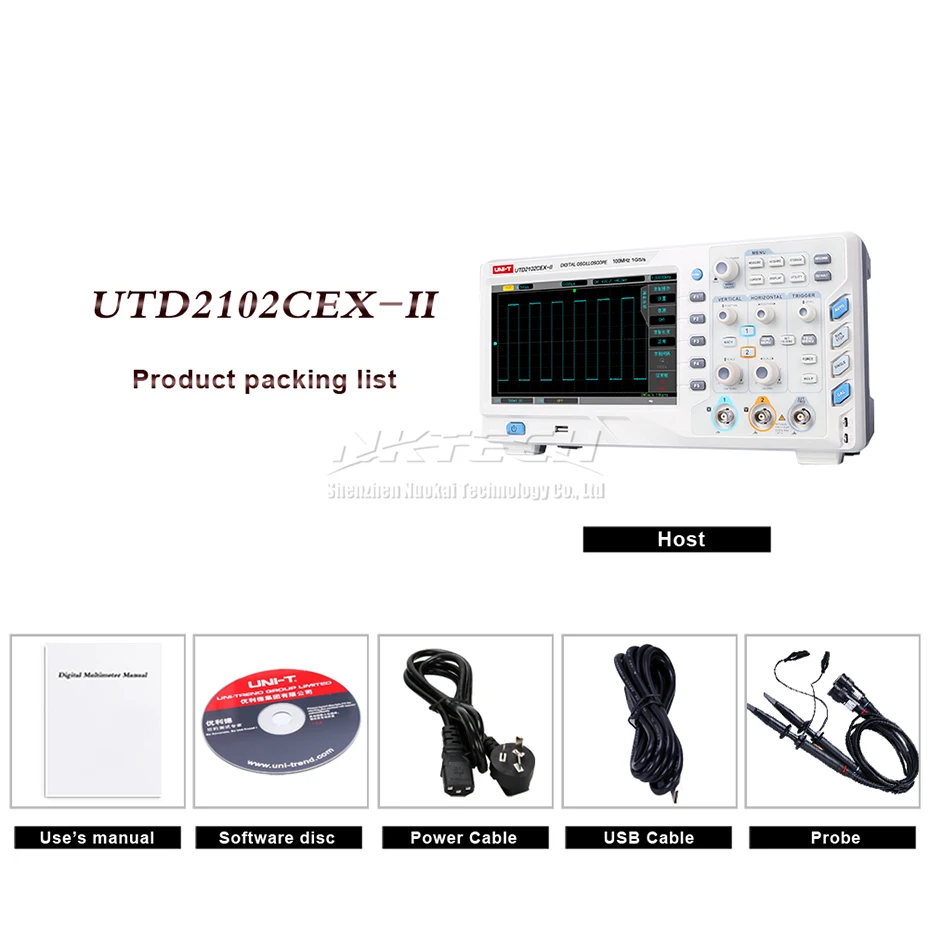

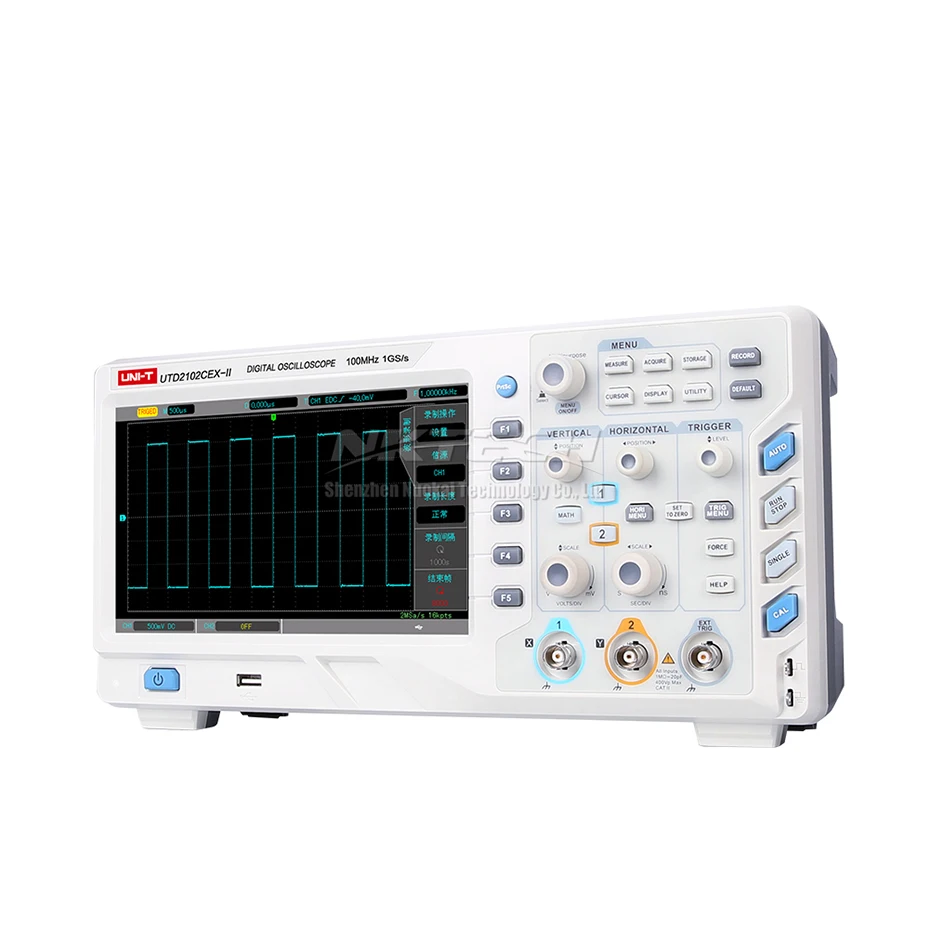

UNI-T UTD2102CEX-II UTD2072CEX-II Digital Storage Oscilloscope 2CH 100MHz Bandwidth 800x480 WVGA Phosphor 8Inch TFT 1GS/s 25kpts
sku: 32910186929
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$299.09
Shipping from: China
Technical Details
| Band Width: | 70MHz (UTD2072CEX-II), 100MHz (UTD2102CEX-II) |
| Brand Name: | UNI-T |
| Digital Channels: | 2 |
| Display resolution: | 800*480 Pixels |
| Display Size: | 7 Inches & Above |
| DIY Supplies: | Electrical |
| Interface: | USB OTG, Pass/Fail |
| IS Battery Demountable: | Yes |
| Lcd Size: | 8 Inches TFT LCD 800 x RGB x 480 |
| Max Waveform Capture Rate: | 30,000wfm/s |
| Model Number: | UTD2102CEX-II / UTD2072CEX-II |
| Pluse Width range: | 100ns~10s |
| Real Time Sampling Rate: | 1GSa/S |
| Record Length: | 25ktps |
| Rise time: | =< 5ns (UTD2072CEX-II), 3.5ns (UTD2102CEX-II) |
| Sample rate: | 1GS/s (single channel), 500MS/s (dual channel) |
| Storage: | Bitmap, Setup, Waveform |
| Trigger frequency: | 6 bits |
| Trigger Modes: | Edge, Pulse Width, Runt, Over amplitude, Video, Slope |
| Trigger type: | Auto, normal, single |
| Waveform acquisition rate: | >= 20000wfms/s |
