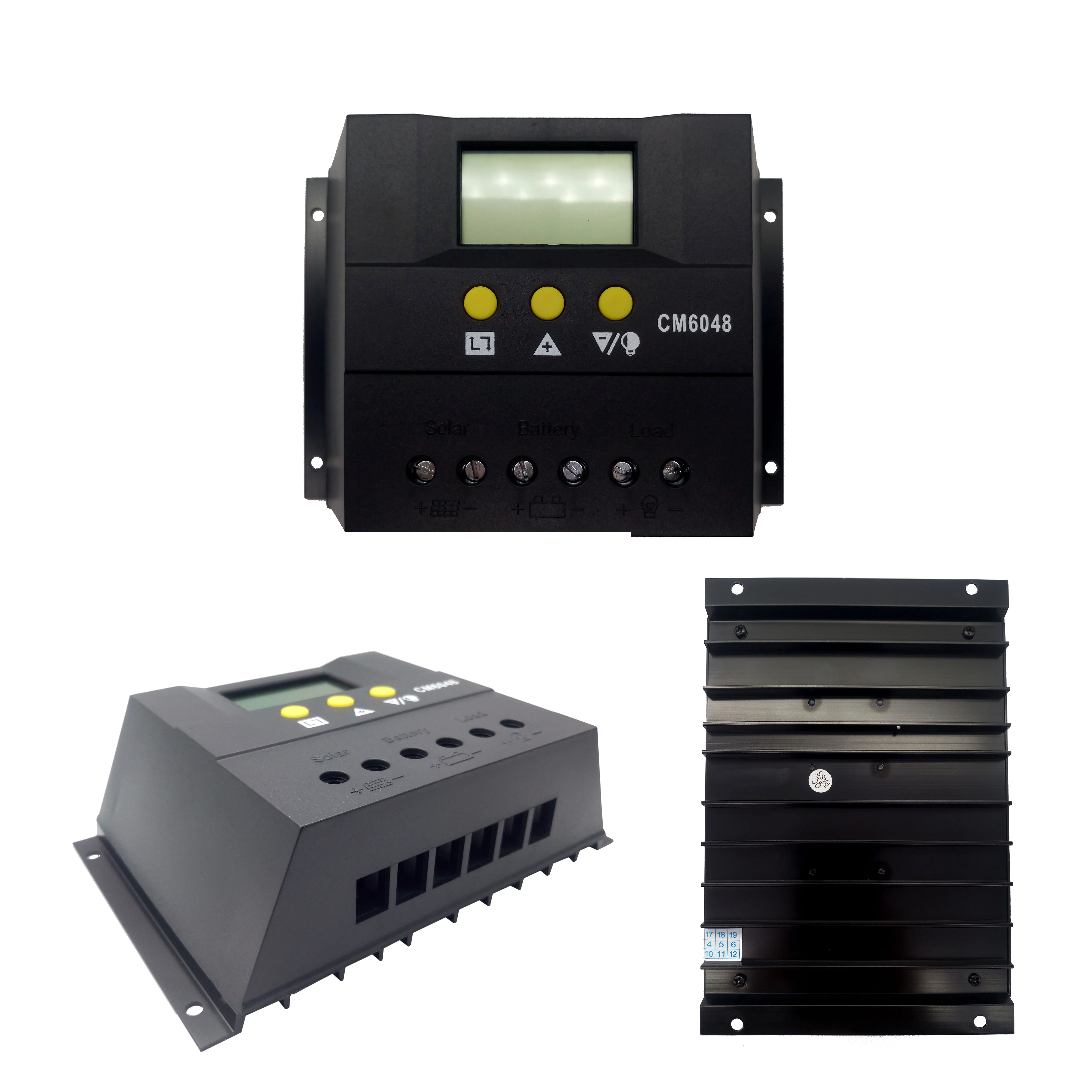

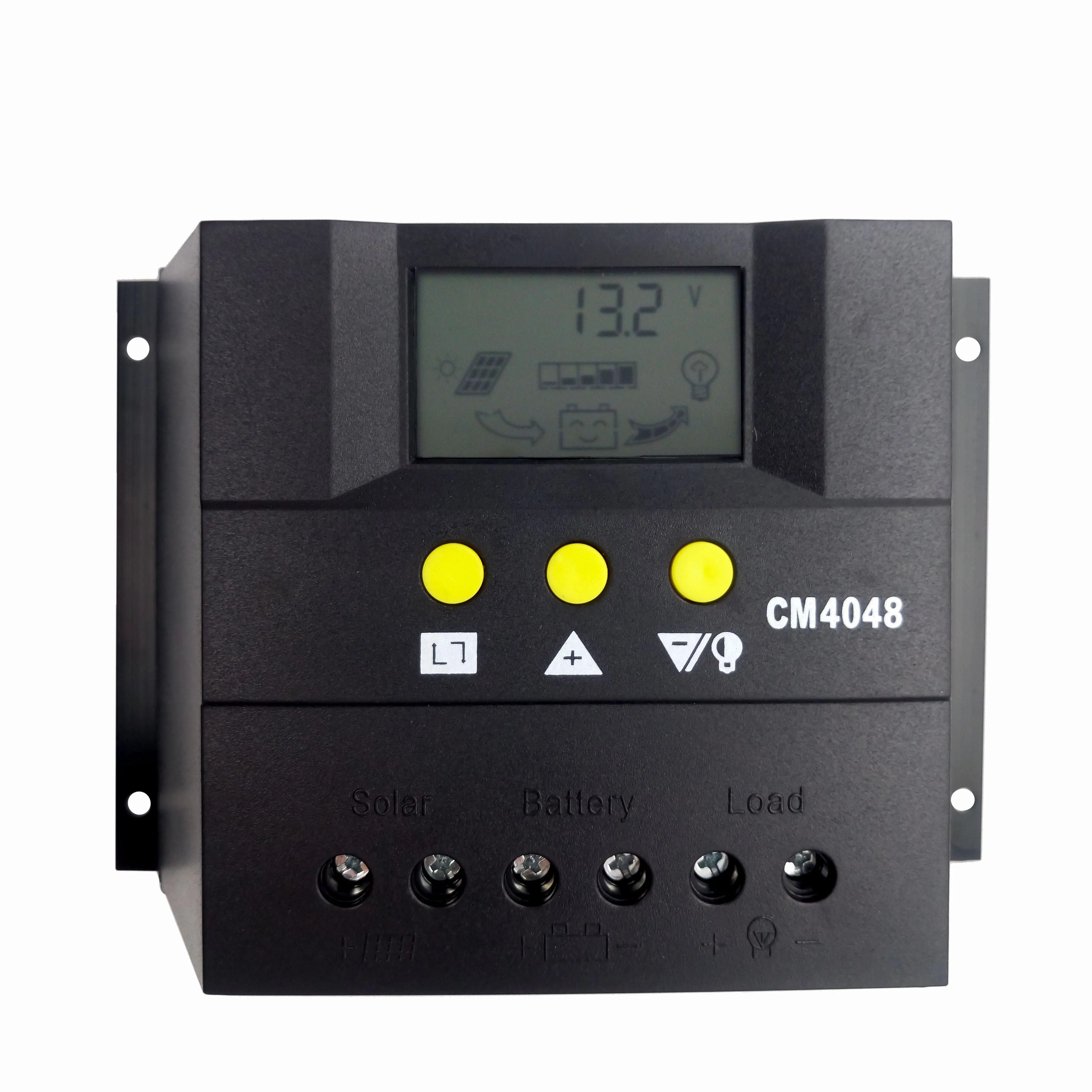

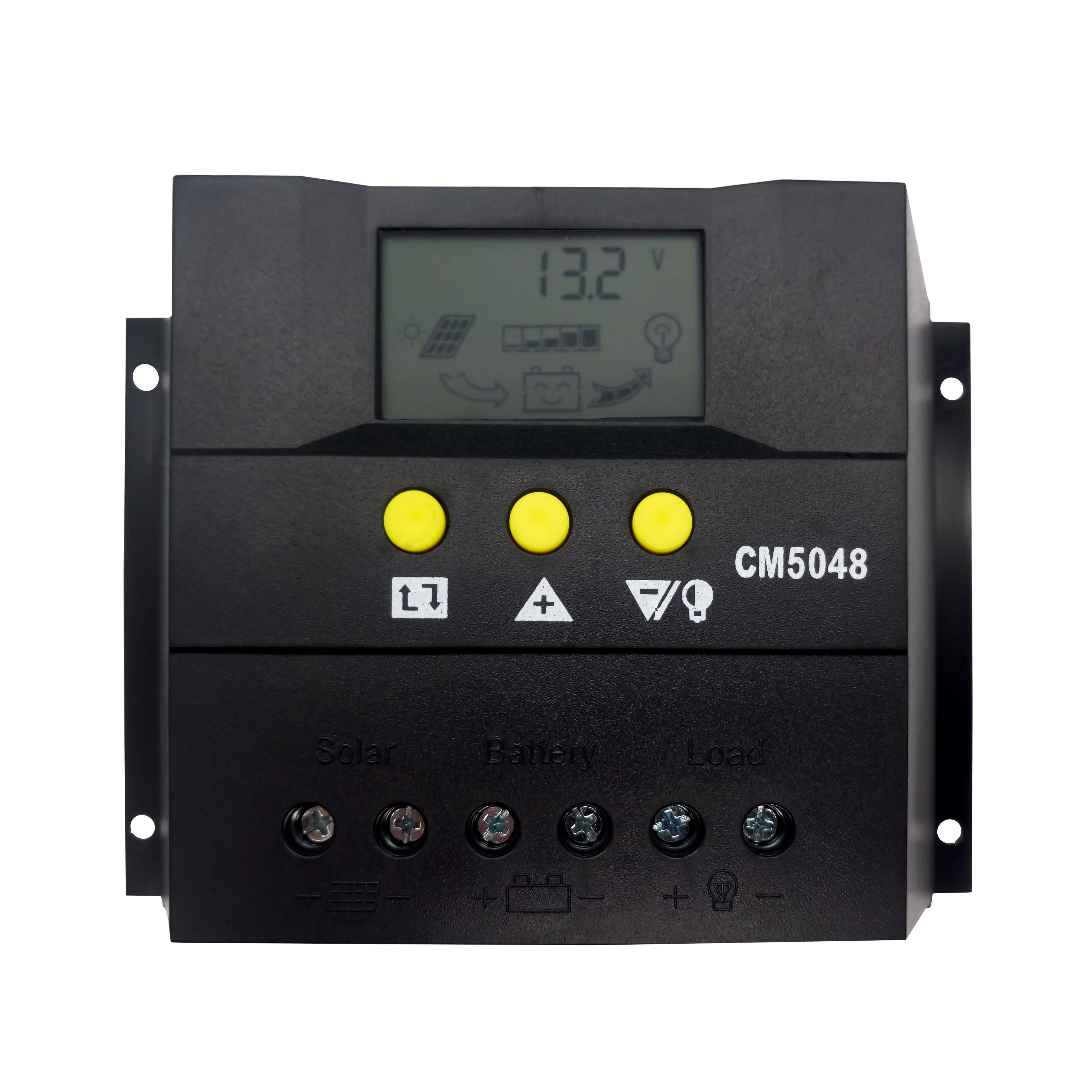

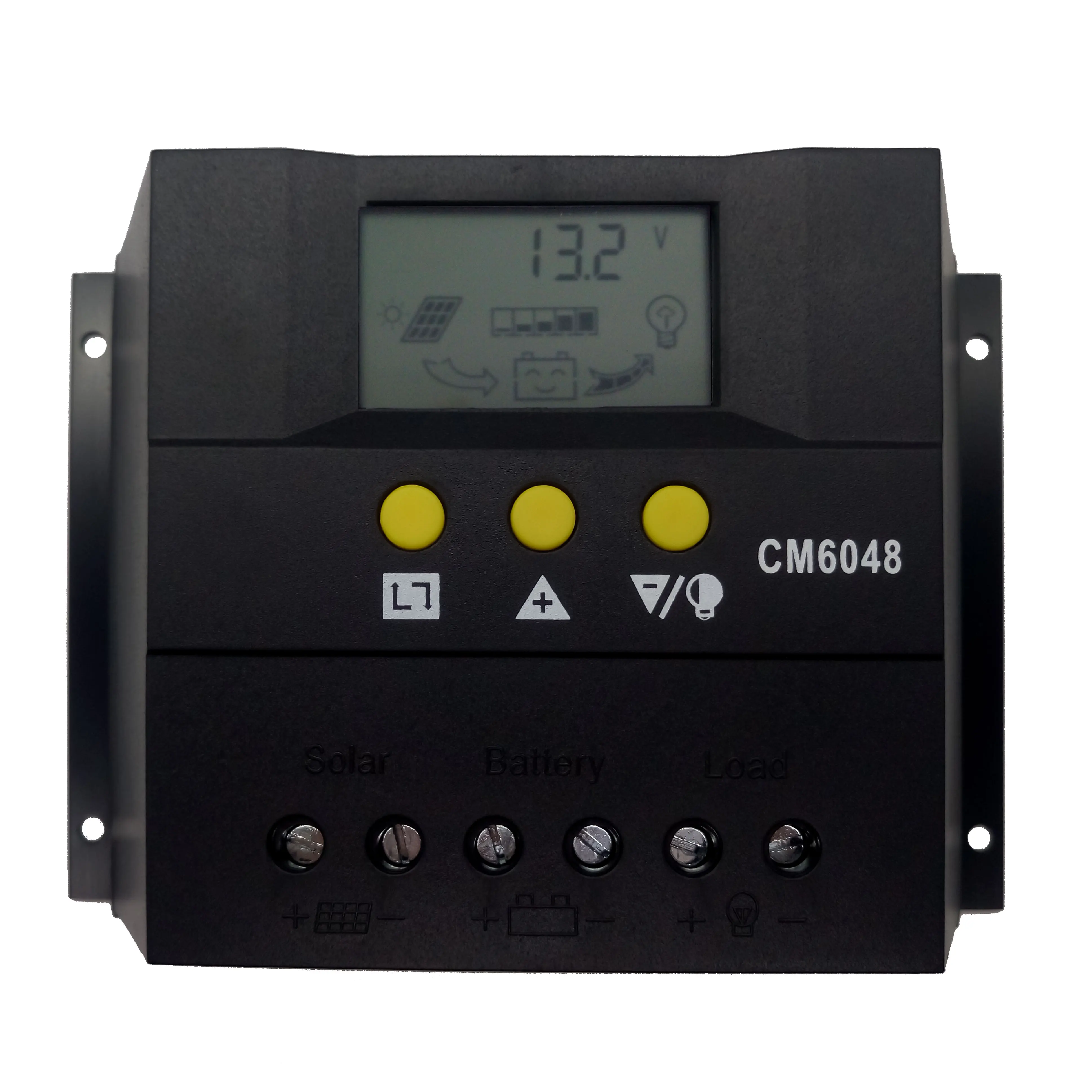

Tumo-Int 30/40/50/60 Amp PWM Smart Solar Controller, 48V Input with LCD Display
sku: 32853070724
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$36.99
Shipping from: China
Technical Details
| A/50A/60A Package size: | 21.7*15.8*9.5cm |
| A/50A/60A Weight: | 0.81KG |
| A Package Size: | 20.9*11*6.3cm |
| Application: | Solar System Controller |
| A weight: | 0.52KG |
| DC output voltage: | 12V |
| Float Charging Voltage: | 54.8V |
| Humidity requirements: | <=90% no condensation |
| Loop Voltage Drop: | <=170mV |
| Low Voltage Protection: | 42V |
| Low Voltage Recovery: | 48.8V |
| Model Number: | PWN-48V |
| No load loss: | <=10mA |
| Operating Temperature: | -20℃-+60℃ |
| Rated Current: | 30A/40A/50A/60A |
| Rated Voltage: | 48V |
| Storage temperature: | -30℃-+70℃ |
| Temperature Compensation: | -4mV/Cell/℃ |
| Voltage of solar panels: | <=100V |
