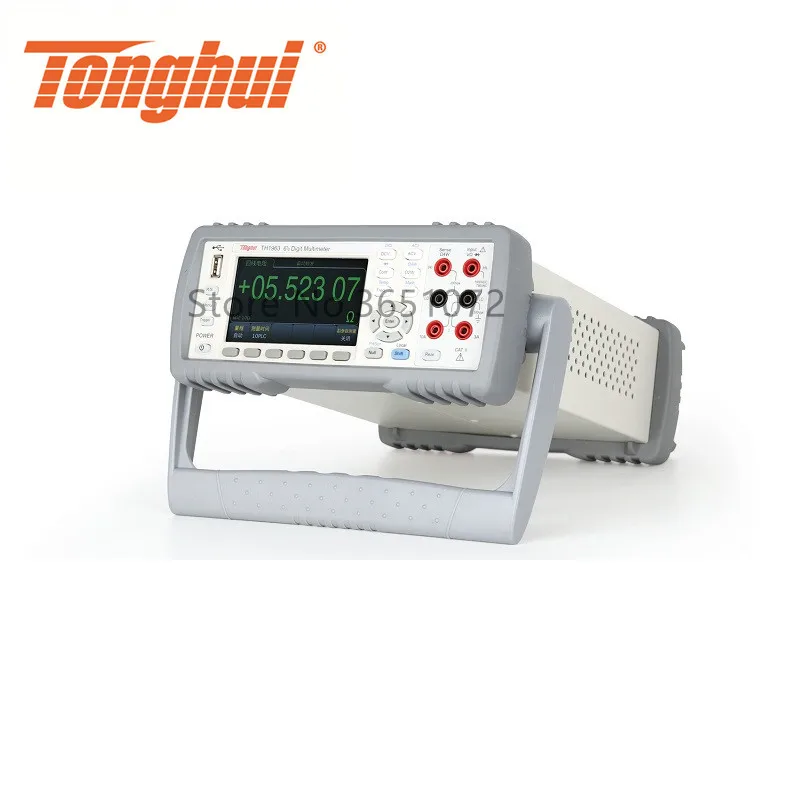

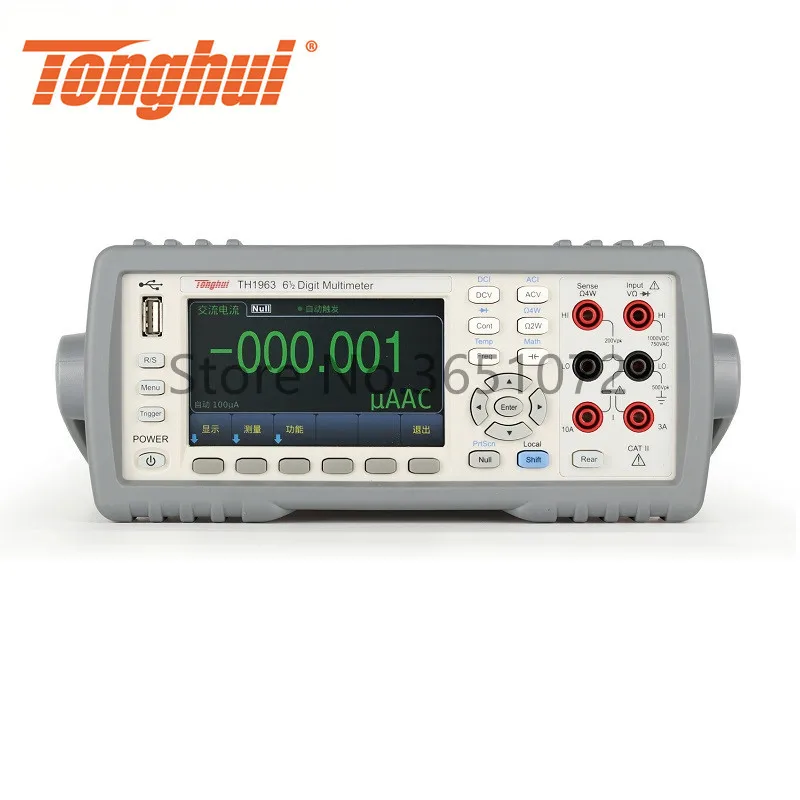

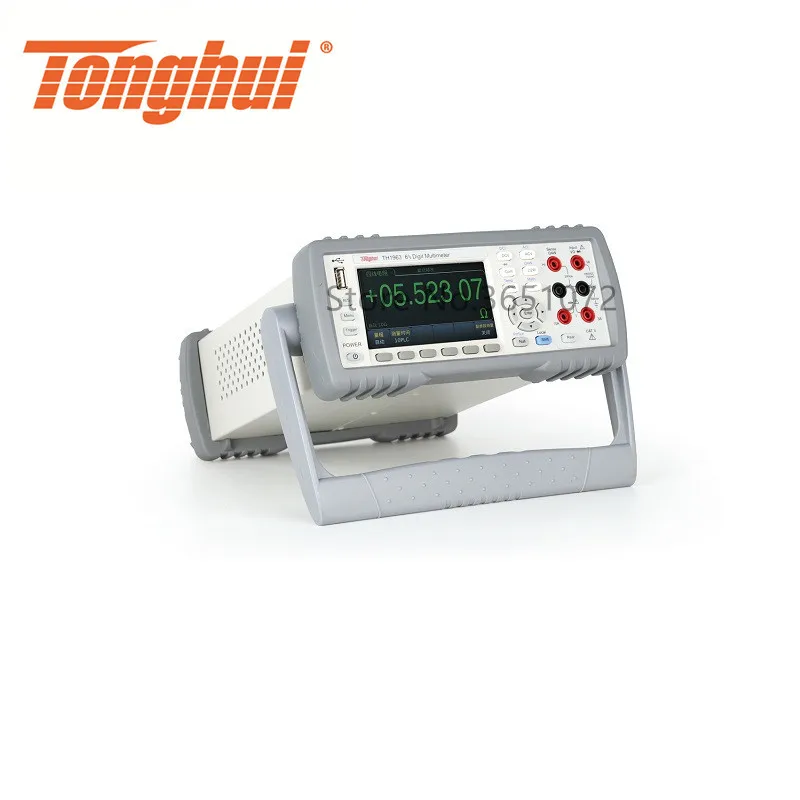

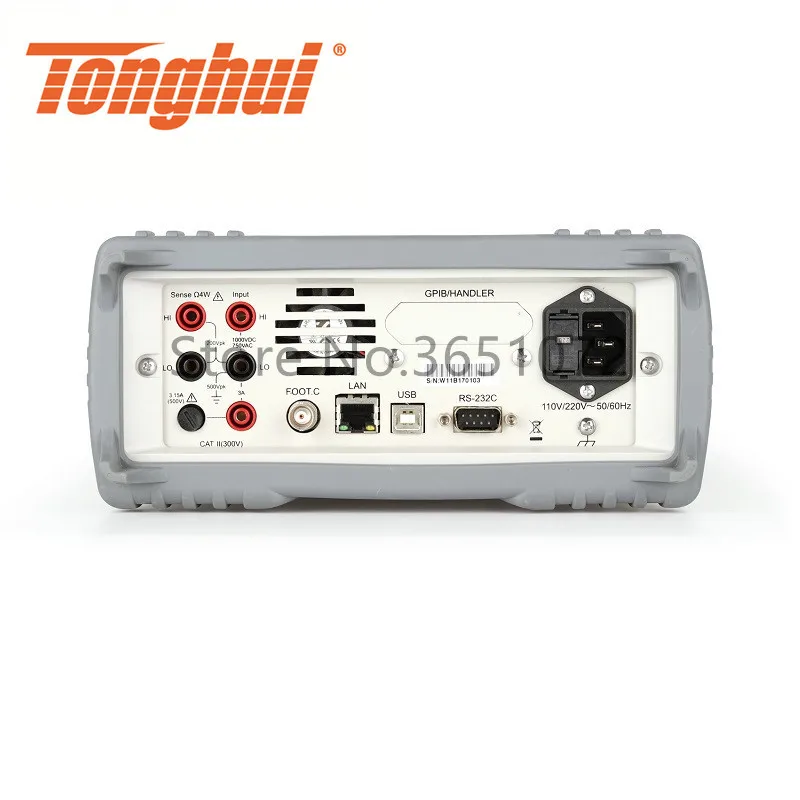

TH1963 4.3-inch LCD Color Display 6 1/2 Digits Digital Multimeter with Capacitance Measurements
Technical Details
| AC Current: | 100μA - 1A |
| AC Voltage: | 100mV-750V |
| Brand Name: | TONGHUI |
| Communication Interface: | SCPI command support for RS232 and USB interface |
| DC Current: | 100uA - 100mA |
| DC Voltage: | 100mV-1000V |
| Dimensions: | Dimension (mm): 235(W) x 105(H) x 320(D) |
| Display: | LCD display |
| Display Type: | Digital Display |
| DIY Supplies: | Electrical |
| External Trigger: | Handle interface (external trigger and output sorting signal) |
| Limitation Measurement: | To judge HI, IN, LO and display, with ALARM for HI/LO |
| Measuring Capacitance Range: | 10.000nF - 1.0000mF |
| Measuring Current Range: | DCI: 1mA-100mA, ACI: 1mA -10A |
| Measuring Inductance Range: | None |
| Measuring Resistance Range: | 10Ω-100MΩ,Test current:10mA - 500nA |
| Measuring Voltage Range: | DCV: 100mV-1000V, ACV: 100mV-750V |
| Model Number: | TH1963 |
| Operating Mode: | Easy operation |
| Operating Temperature: | 0 - 40 ℃ |
| Ranging Mode: | Auto and Hold |
| Size: | Dimension (mm): 235(W) x 105(H) x 320(D) |
| Test parameter: | DCV, ACV, DCI, ACI, DCR, CP, FREQ, CONT, DIODE, TEMP |
| Trigger Mode: | INT/BUS/EXIT |
