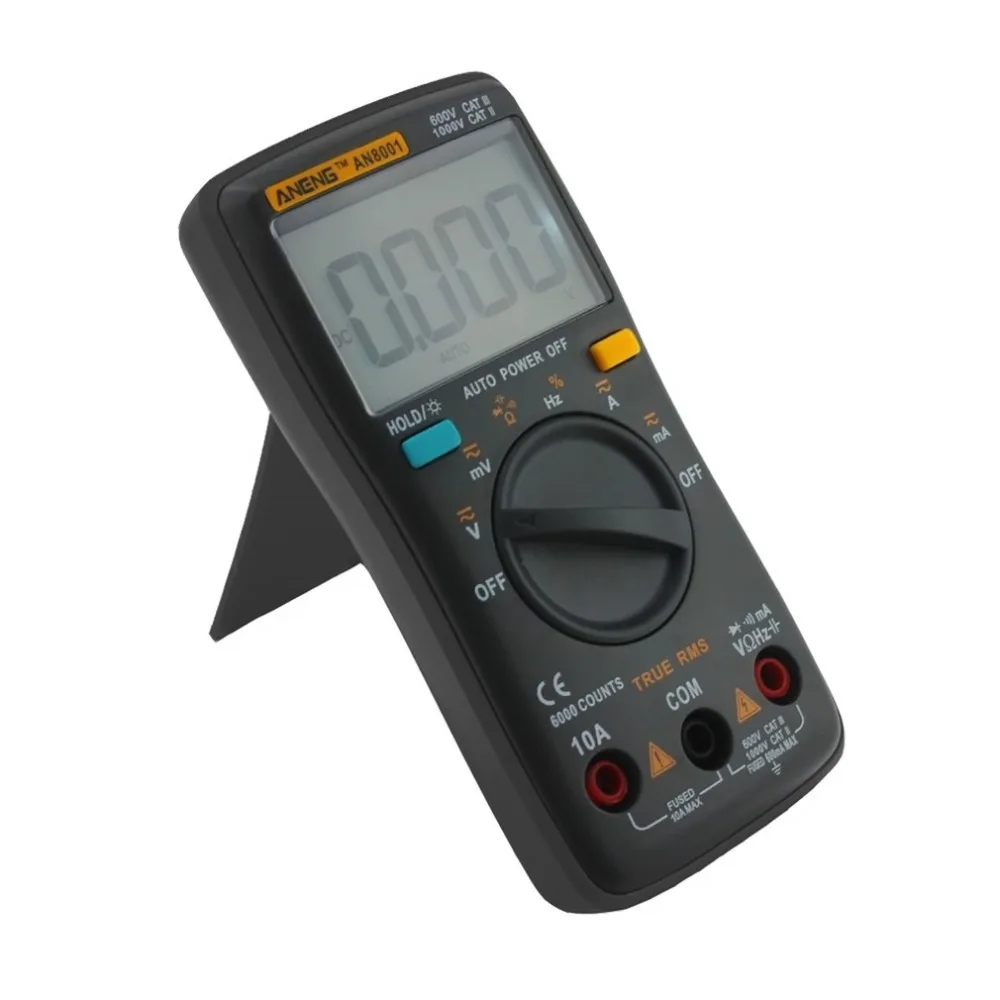

Professional Digital Multimeter AN8001 LCD Display Digital Multimeter 6000 Counts AC/DC Ammeter Voltmeter Ohm Meter Tester
sku: 32916752811
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$16.85
Shipping from: China
Technical Details
| AC Current: | 600uA/6000uA (+ 1.5%+3), 60mA/600mA (+ 1.5%+3), 10A (+ 1.5%+3) |
| AC Voltage: | 600mV (+ 3.0%+3), 6V/60V/600V/750V (+ 1.0%+3) |
| Brand Name: | ANENG |
| Color: | Black |
| DC Current: | 600uA/6000uA (+ 1.5%+3), 60mA/600mA (+ 1.5%+3), 10A (+ 1.5%+3) |
| DC Voltage: | 600mV (+ 1.0%+10), 6V/60V/600V/1000V (+ 0.5%+3) |
| Dimensions: | 65x130x32mm |
| Display Type: | Digital Display |
| DIY Supplies: | Electrical |
| Material: | plastic |
| Measuring Capacitance Range: | 10nF (+ 5.0+20), 100nF/1uF/10uF/100uF (+ 2.0%+5), 1000uF/10000uF (+ 5. |
| Measuring Inductance Range: | 5/50/500/5k/50k/500k/5M/10M (+ 0.1+3) |
| Measuring Resistance Range: | 600 (+ 0.5%+3), 6K/60K/600K/6M (+ 0.5%+2), 60M (+ 1.5%+3) |
| Model Number: | YB53500-YB53700 |
| Operating Mode: | double integral A/D converter |
| Operating Temperature: | 0 - 40 ℃ |
| Power Supply Voltag: | 3V (AAA x2 Pcs 1.5V)(Not included) |
| Size: | 65x130x32mm |
| Working environment: | 0~40 C, relative humidity < 80% |
