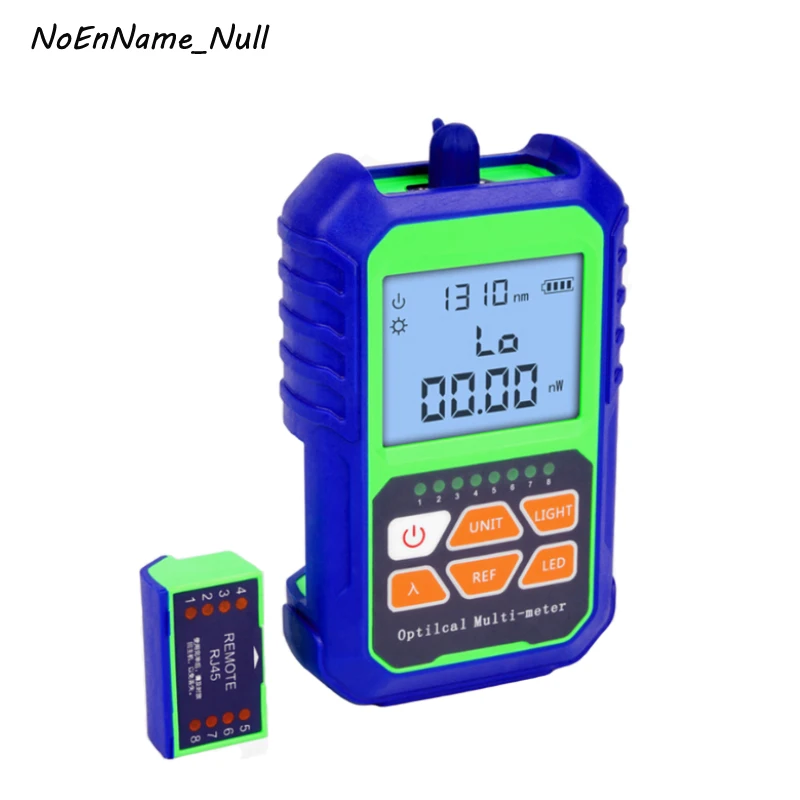

Portable Mini Fiber Optical Power Meter Built in RJ45 Network test port ,and Handheld Stable light source Fiber Optic Cable Test
sku: 33008929890
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$115.21
Shipping from: China
Technical Details
| Auto off time: | 10 minutes |
| Auto Switch-off Timemin: | 10min |
| Battery Operating Time: | 45 hours |
| Battery working timeh: | 48hrs |
| Connectors: | FC / PC |
| Connector Type: | SC/FC/ST |
| Display resolution: | Linear indication 0.1%; Logarithmic indication 0.01dBm |
| Fiber Type: | SM |
| Frequency: | 0/270/1000/2000 |
| Item Length: | 1m |
| Mini Optical Power Meter Parameter: | Optical communication equipment |
| Model Number: | OPM with RJ45 and Stable light source |
| Modulation: | CW / 270 / 1K / 2K |
| PON light special: | 1310 / 1550nm |
| Power: | AAA Battery*2 |
| Power Supply: | AA Battery * 3 |
| Red light power mW: | 1 5 10 20 30 (Optional) |
| Red light working wavelengthnm: | 650 |
| Save the number of data pcs: | 20000 |

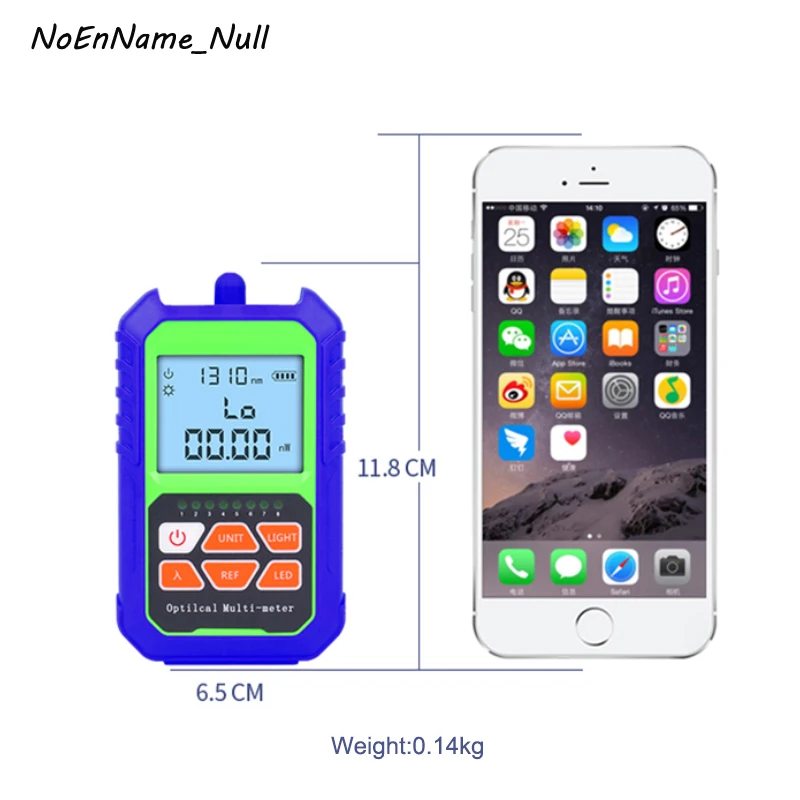

| Size: | OPM : 65*30*118mm Stable light source : 190X100X48MM |
| Stable light source Parameter: | Fiber optical equipment |
| Standard Wavelengthnm: | 850/1300/1310/1490/1550/1625 |
| Storage temperature: | -25~+70 |
| Storage temperature: | -20~+70 |
| Test Range: | A : (-70~+3dbm ) B : ( -50~+20dbm) |
| The light emitting device: | FP-LD |
| Type: | Stable light source |
| Type of Detector: | InGaAs |
| Uncertainty: | -5%~5% |
| Wavelength Range: | 800~1700nm |
| Weight: | 400g |
| Weight g: | 160 |
| Wireless effective distance m: | 50 |
| Working Temperature: | -10~+60 |
| Working Wavelength: | 1310 / 1550nm |
