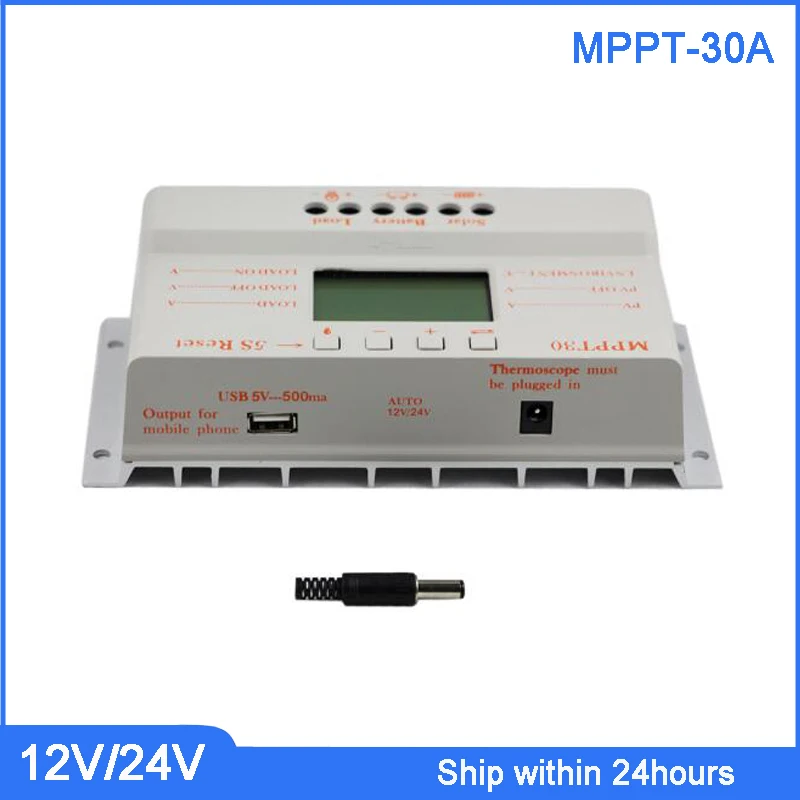

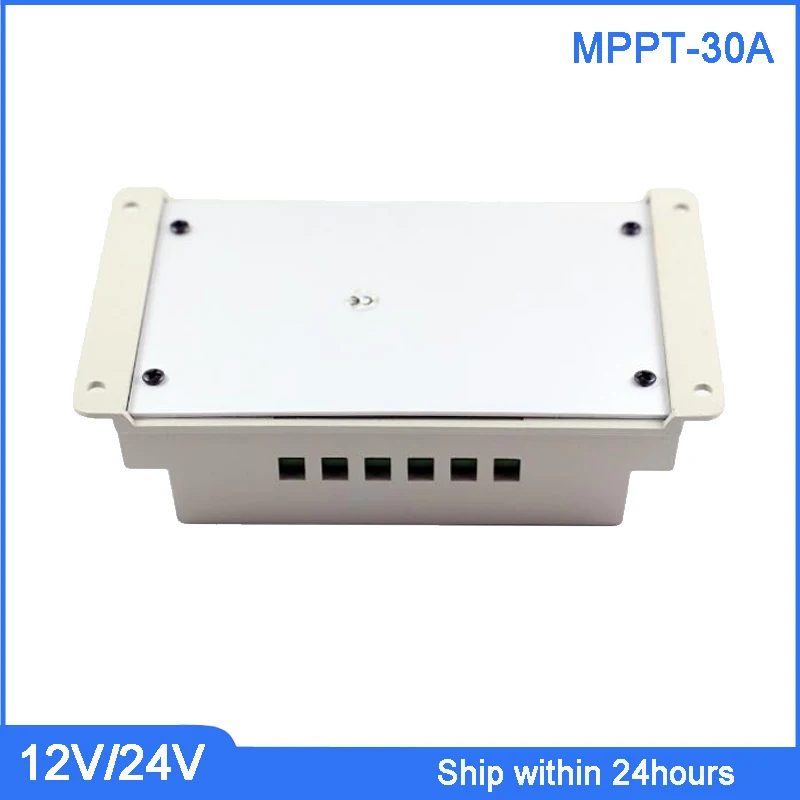

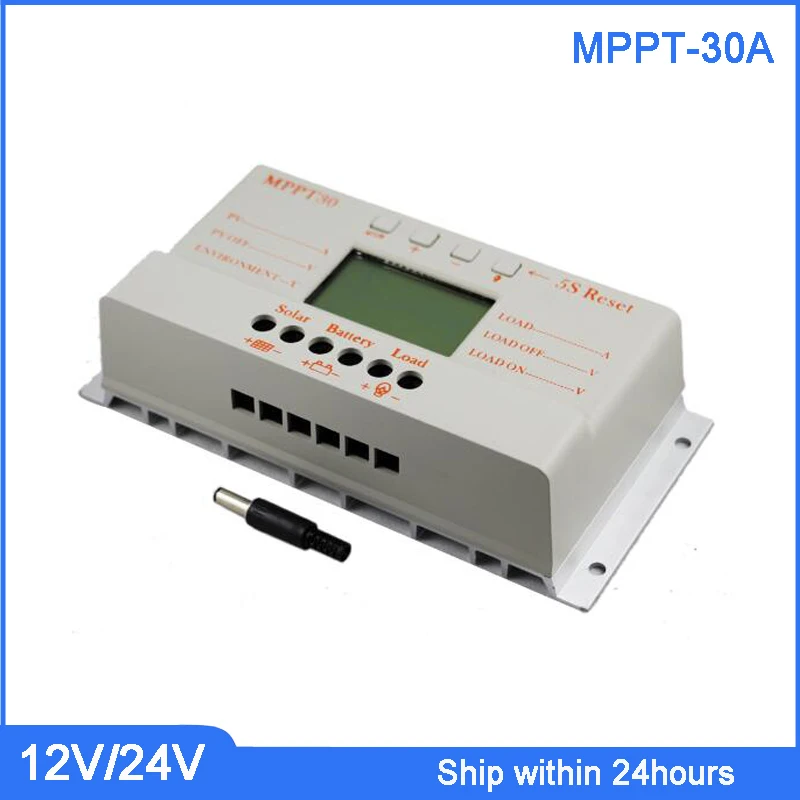

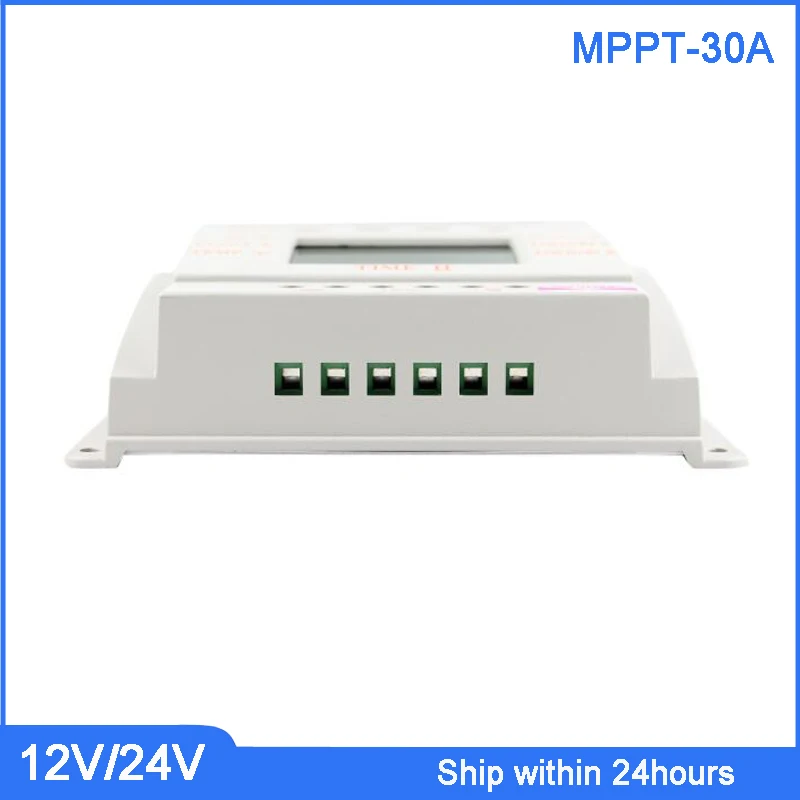

PWM Mode Solar PV Controller 30A LCD Display 12V/24V Solar MPPT Regulator with Load Light and Timer Control for Max 50V Input
sku: 32877968530
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$51.30
Shipping from: China
Technical Details
| Application: | Charger Controller |
| Battery float voltage: | 13.8V(12V system)/27.6V(24V system) |
| Batteryunder voltage protection: | 10.6v(12V system)/21.2V(24V system) |
| Battery under voltage recovery voltage: | 12.6V(12V system)/25.2V(24V system) |
| is customized: | Yes |
| Maximum Current: | 30 |
| maximum open circuit voltage: | 18V-24V(12V system)36V-48V(24V system) |
| maximum open circuit voltage V: | 48V |
| Model Number: | MPPT30 |
| Rate charge current: | 30A |
| Rate discharge current: | 30A |
| System voltage: | 12V/24V AUTO |
| Temperature Compensation: | -4mV/Cell/degree centigrade |
| The Max Input: | 360W(12V) 720W(24V) |
