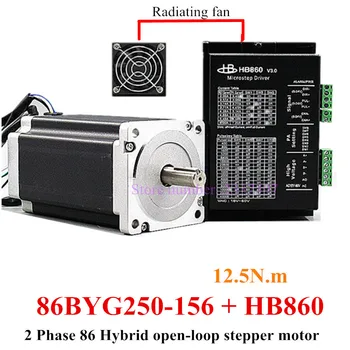

New 2 Phase 86 Hybrid Open-Loop Motor 86BYG250-156 32-Bit DSP Digital Drive HB860 12.5N.m 6A 86mm Stepper Motor 156mm
sku: 32841201836
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$174.85
Shipping from: China
Technical Details
| Body Length: | 156mm |
| Certification: | CE |
| Current / Phase: | 6A |
| Holding Torque: | 600 |
| Keyway: | 5 * 5 * 25mm |
| Maximum Speed: | 1200rpm |
| Model: | 86BYG250-156 |
| Model Number: | 86BYG250-156+HB860 |
| Motor button force: | 12.5N.m |
| Motor frame number: | 86 * 86mm |
| Phase: | 2 |
| Power: | AC18-80V |
| Rated speed: | 600rpm |
| Shaft diameter: | 14mm |
| Step Angledegrees: | 12.5N.m |
| Type: | Hybrid |
| types: | Hybrid open-loop stepper motor |
