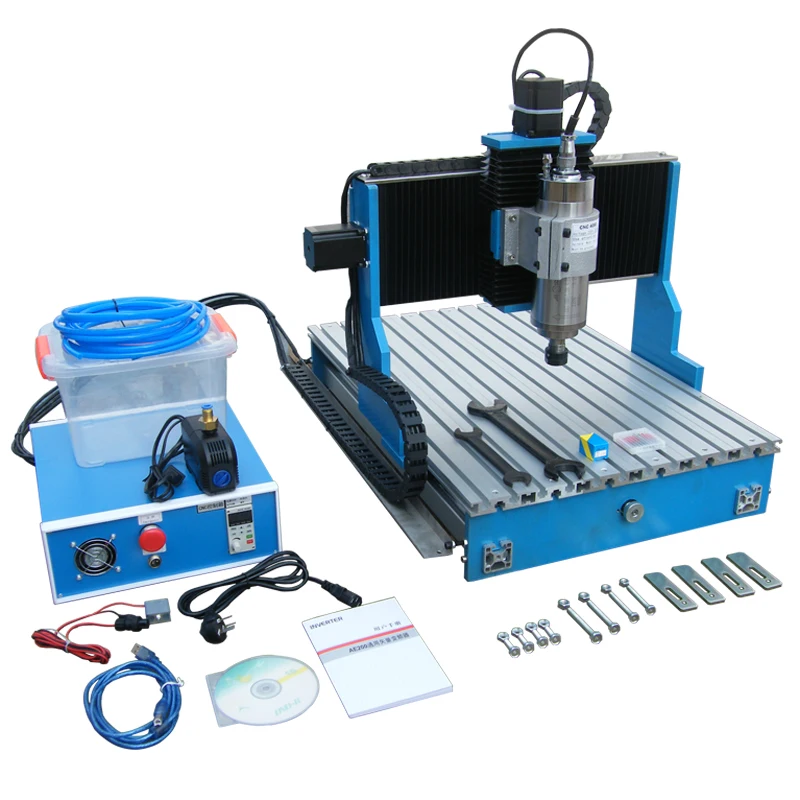

Linear Guide Rail 6040L-1.5KW 3axis CNC router Engraving Milling Machine
sku: 32995055251
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$1,637.16
Shipping from: China
Technical Details
| Acceptable material thickness: | 140mm |
| CNC or Not: | CNC |
| Collet type: | ER11,1/8"(3.175mm) and 6mm Collet |
| Condition: | New |
| Engraving Area: | 360 *570mm |
| Machine Dimensions: | 830 *620 * 600mm |
| Model Number: | 6040L-1.5KW 3axis |

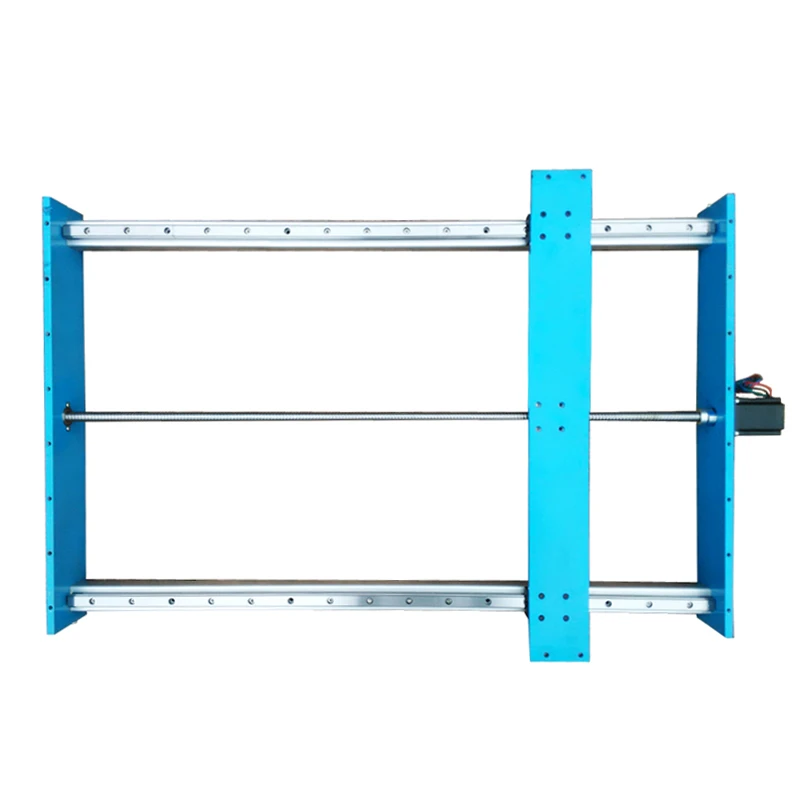

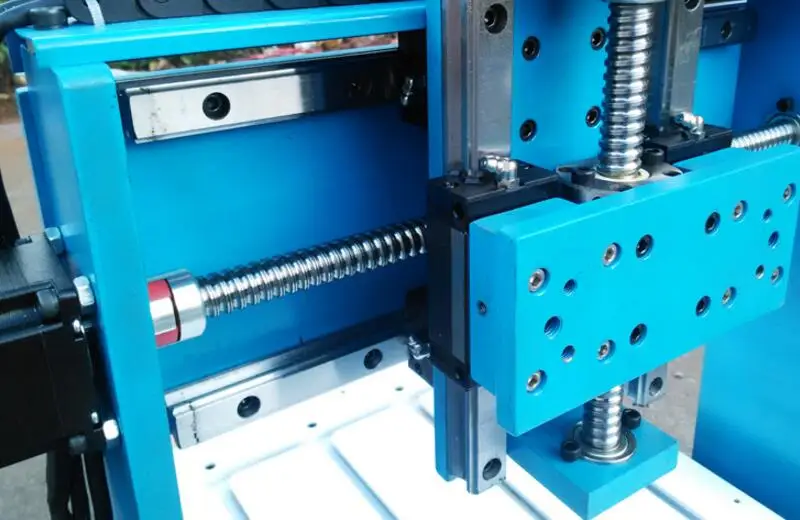

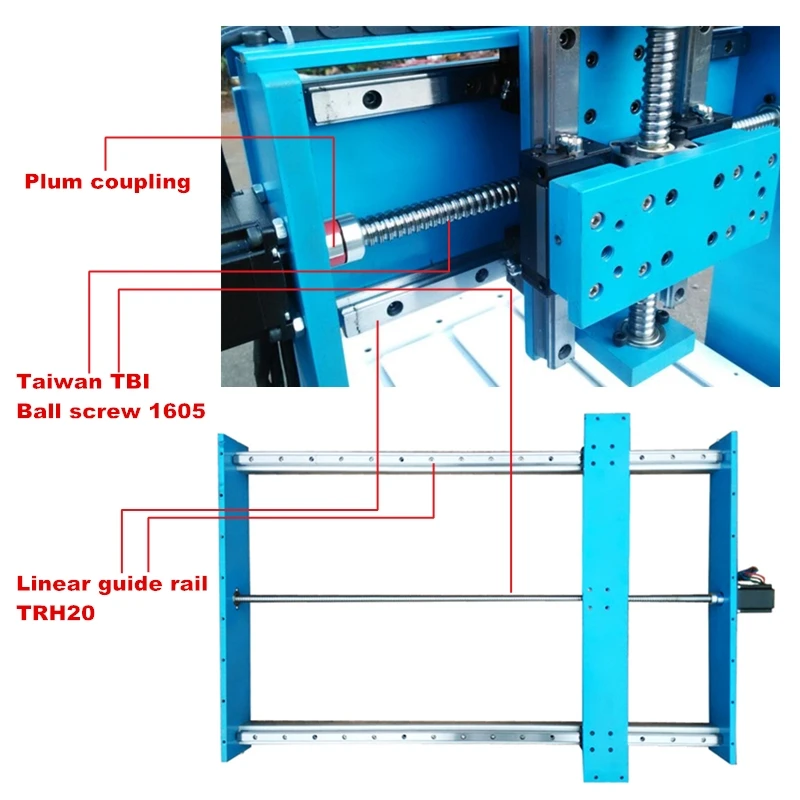

| Rail Type: | Linear guide rail TRH20(more precise moving) |
| spindle motor: | 1.5KW VFD water cooling spindle ,0-24000r/min |
| Stepper motor and drive: | two-phase 57/3A |
| Table size: | 460 * 720mm (20mm aluminum alloy T table) |
| Type of screw: | Taiwan TBI Ball screw 1605 |
| Z-Axis Stroke: | 120mm, Engraving depth depends on the length of the tool edge |
