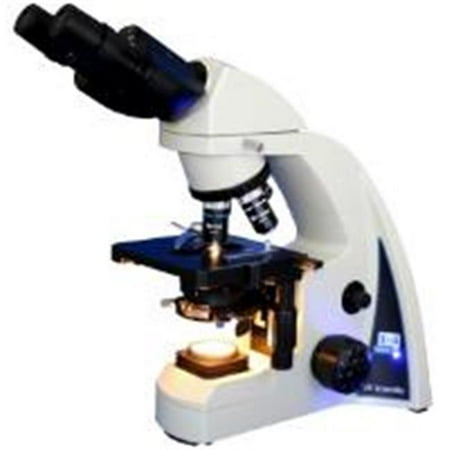

LW Scientific I4M-TN4A-IPL3 I-4 Infinity Plan Trinocular - 4 Objectives

The i4 modular series microscope features exceptional optical quality expandability for top-notch performance in the lab. Use the rotating Head to adjust the height for taller users. Infinity Plan and Semi-Plan optics with a 30-year anti-fungal coating match quality with value within any clinics budget. The i4 microscope provides comfort durability dependability and superior imaging for the lifetime of the laboratory. Accessories include: blue and green filters dust cover immersion oil manual and card. Head: Binocular (Seidentopf) Trinoc available. Digital cameras and adapters available. Diopter adjustment. Inclined 30° rotates 360°. 10X/18 WF Eyepieces. (10X/20X Super WF HP eyepieces available). Interpupillary distance range 55-75mm. Nosepiece: Reverse quadruple Nosepiece. Multiple ball bearing mounted. Objectives: Infinity Semi-Plan or Plan Objectives. 4X 10X 40XR 100XR (oil). 50X (oil) objective is also available. Anti-fungal parfocal parcentric color-coded. Stage: Mechanical Stage (140mm x 140mm). Coaxial drive controls metal rack and pinion. Range of traverse: 73mm x 43mm. Stage locking lever. Slow-close hydraulic slide finger. Focus: Coarse adjustment: range of 30mm. Fine adjustment: graduation of 2µm. Tension control knob. Illumination: Moveable Abbe condenser NA 1.25. Iris Diaphram. LED daylight long-life light source. Variable light adjustment: 0-20W output. 90-240V / 50-60Hz automatic-switching. power cord. Medical-Grade Microscope. Anti-Fungal Coating on All Lenses. LED daylight long life Illumination. Dimensions: Height: 14.1 . Length: 10.7 . Width: 6.1 . - SKU: LWST013
