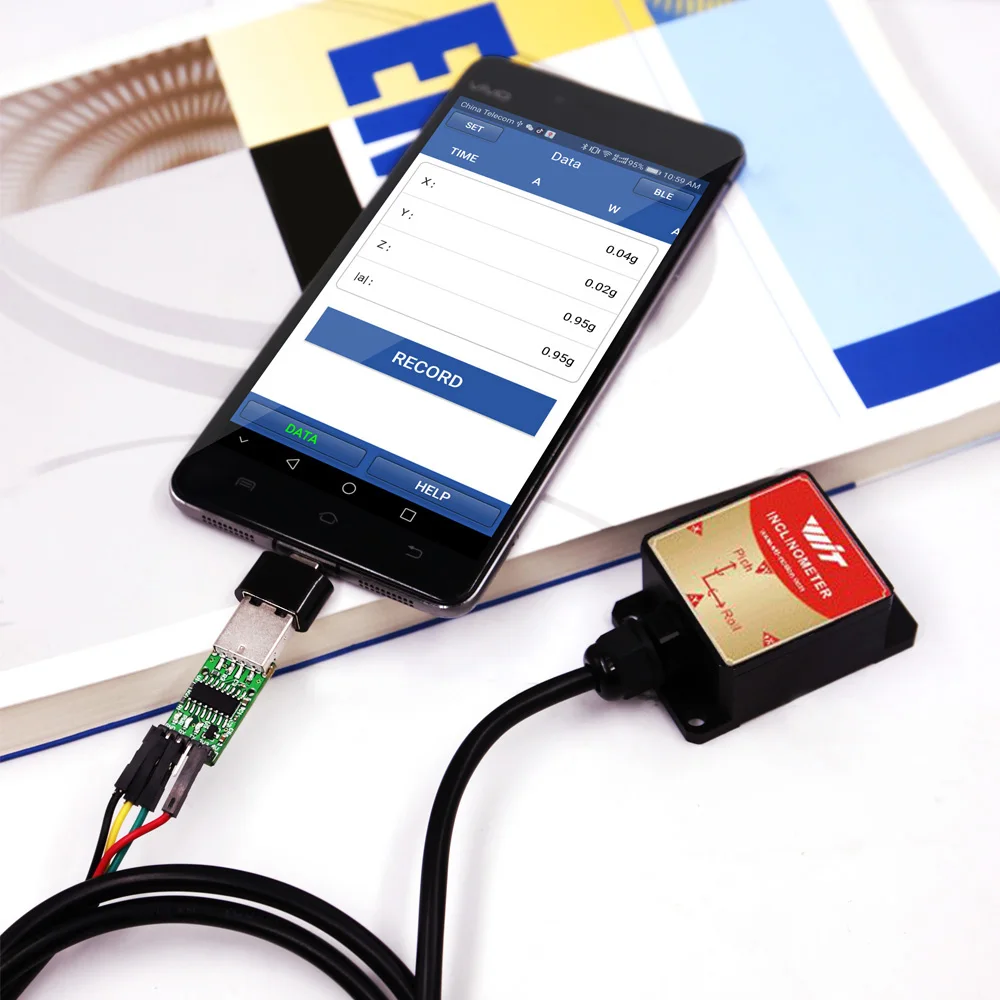

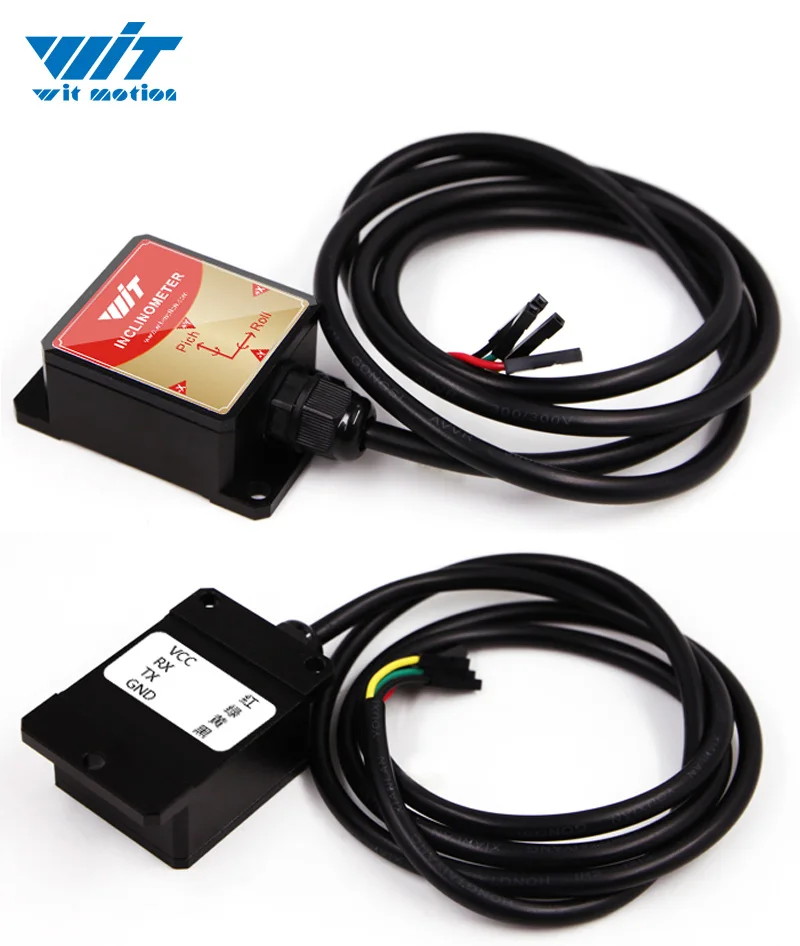

High-Precision Inclinometer HWT905 Military-Grade Accelerometer+Digital Compass+Gyro,with Temperature&Magnetometer Compensation
sku: 32996717986
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$85.50
Shipping from: China
Technical Details
| after-sale service: | Lifetime Technical Support |
| Application Age Group: | Adult |
| Brand Name: | WitoMotion |
| Built-in chip: | RM3100 module+SCA3300 Accelerometer |
| Compatibility: | All Compatible |
| Consumption current: | <40mA |
| Feature: | Temperature and Magnetometer Compensation |
| Function: | 其它(Other) |
| Interface: | TTL/ RS232/ RS485 optional |
| Language: | Turkish |
| Measurement Accuracy: | X/ Y axis 0.05 degree, Z axis 1 degree |
| Measurement Angle: | X/Z-axis: +-180 degree, Y-axis +-90 degree |
| Measuring: | 3-axis XYZ Acceleration, Angular rate, Gyro, Angle, Magnet Field |
| Output Frequency: | 0.1Hz ~200Hz |

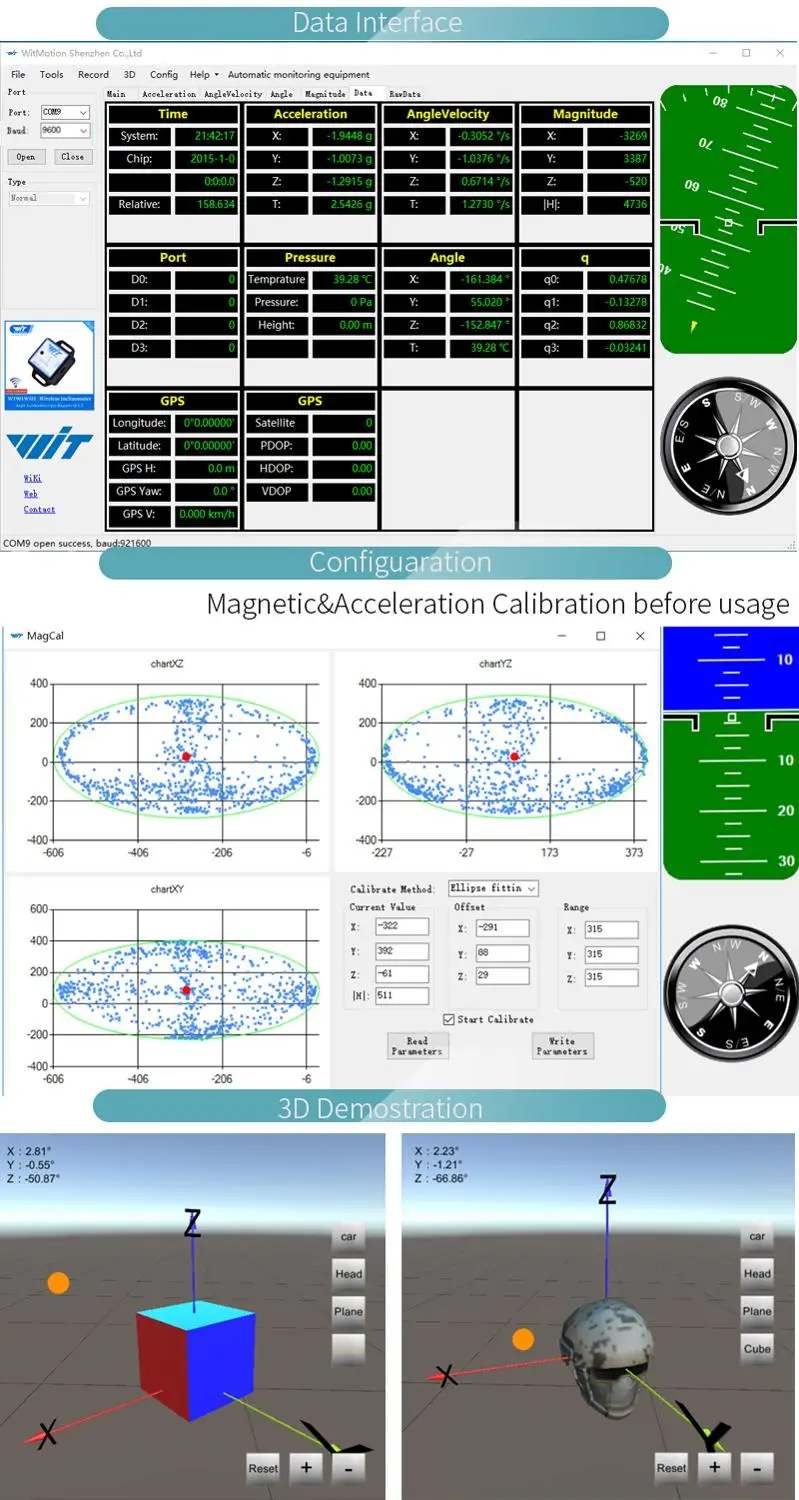

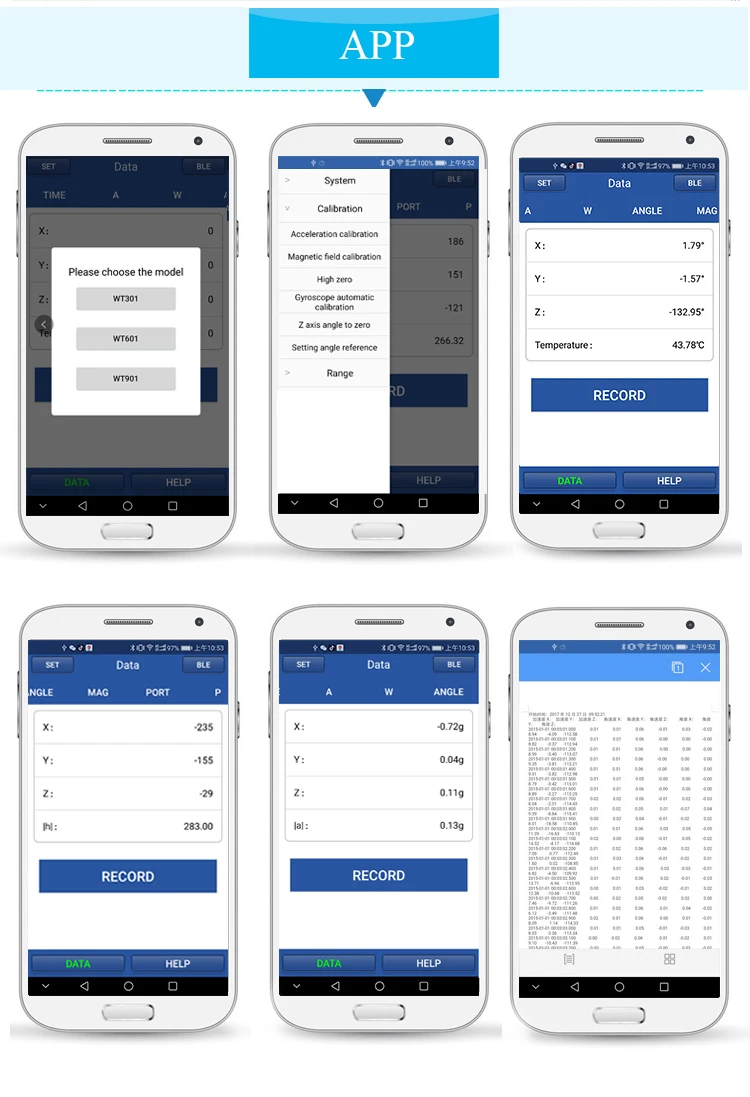

| Technical support: | Provide Android App, PC software, Sample code |
| Type: | Wearable |
| Voltage input: | 3.3-5V(TTL version), 9-36V (RS232/RS485 version) |
| Volume: | 55mm X 36.8mm X 24mm |
| Waterproof: | IP67 protection |
