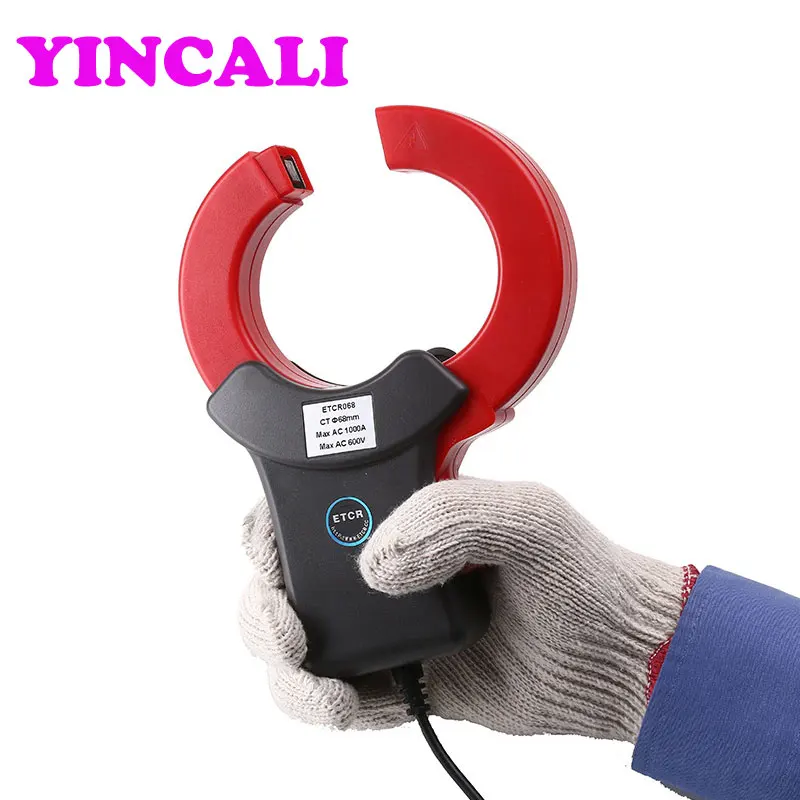

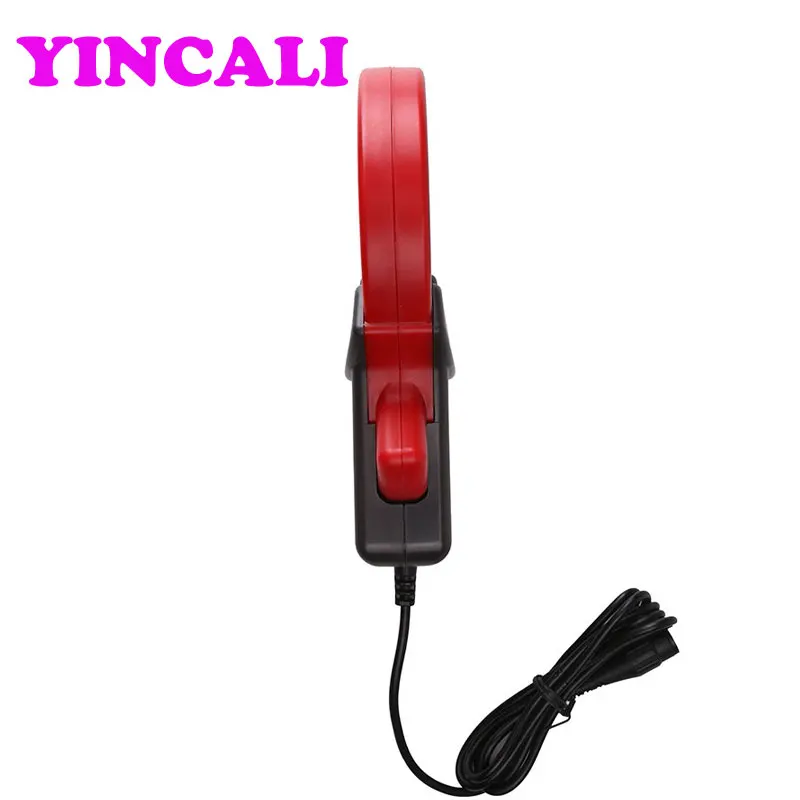

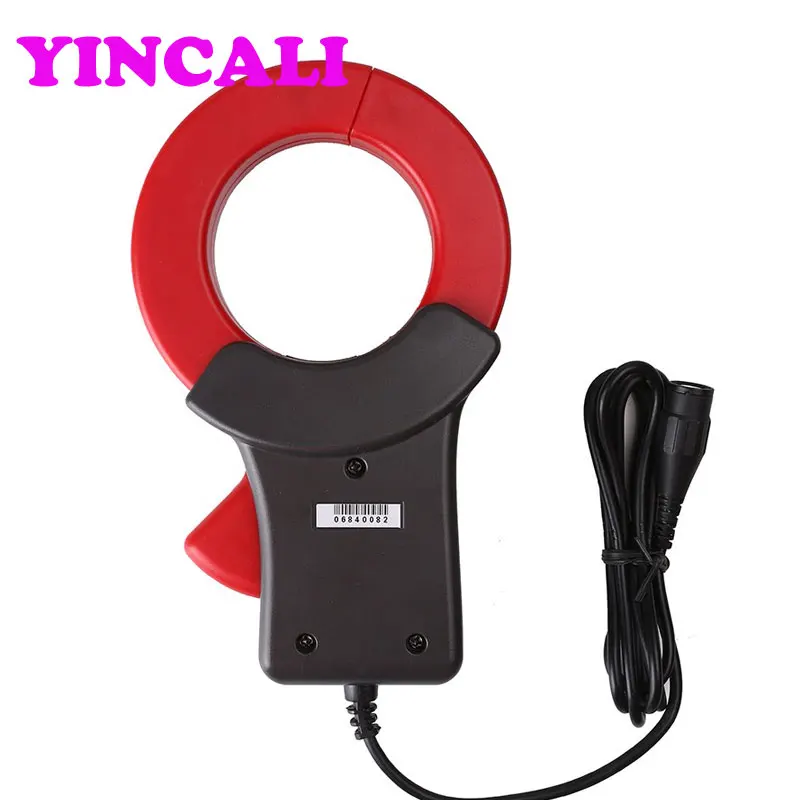

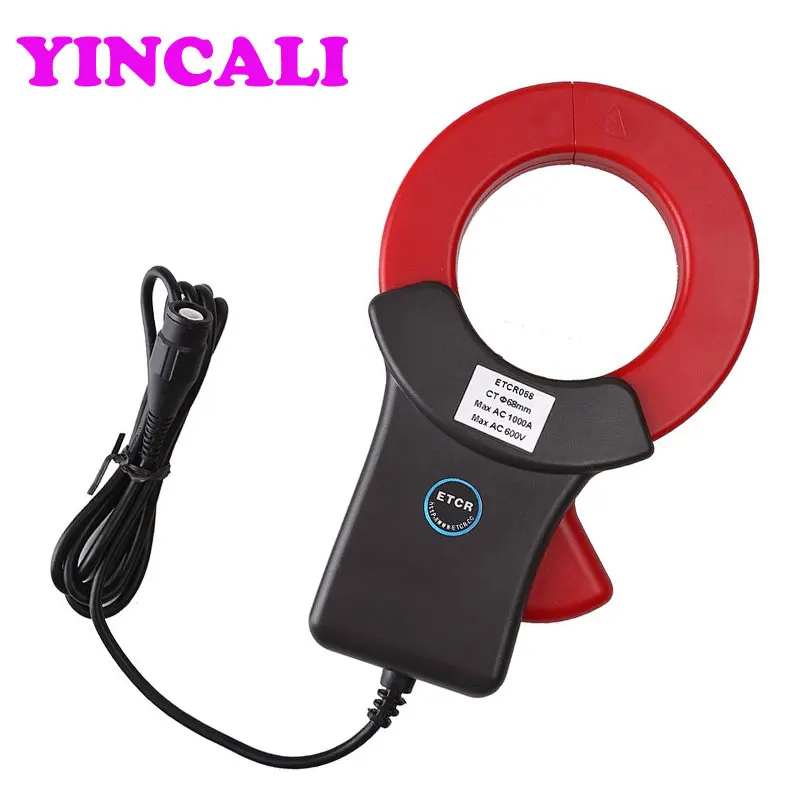

High Accuracy Clamp leakage current sensor ETCR068 AC Leakage Current, Current, Harmonic Current Measurement Range 0mA~1000A
Technical Details
| Accuracy Class: | +/-2.0%FS |
| Brand Name: | YINCALI |
| Coil turns: | 2400 : 1 |

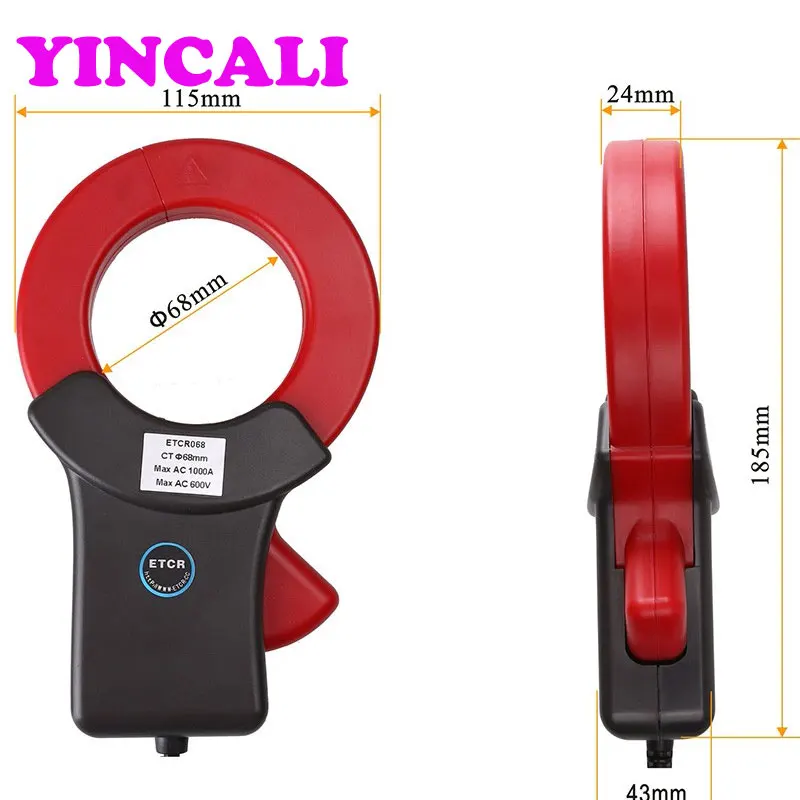

| Dimensions: | 185mm*115mm*43mm |
| Display Type: | Digital Only |
| DIY Supplies: | Electrical |
| Frequency: | 10Hz~100kHz |
| Insulation strength: | AC 3700V/rms. (between core and shell) |
| Measuring Current Range: | 0.00mA~1000A |
| Model Number: | ETCR068 |
| Operating Temperature: | -20C~50C |
| Resolution: | 0.01mA |
| Sampling Rate: | about 2 times/s |
| Size of clamp: | 68mm |
| Supply Voltage: | Line voltage below 600V |
| Test mode: | Clamp CT |
| Warranty: | One year |
