Digital LCD Capacitance LC Meter LC200A Inductive Inductance Tester Inductor Capacitor Table 1pF-100mF 1uH-100H with Adapter
sku: 4000113045916
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$48.00
Shipping from: China
Technical Details
| Brand Name: | ACEHE |

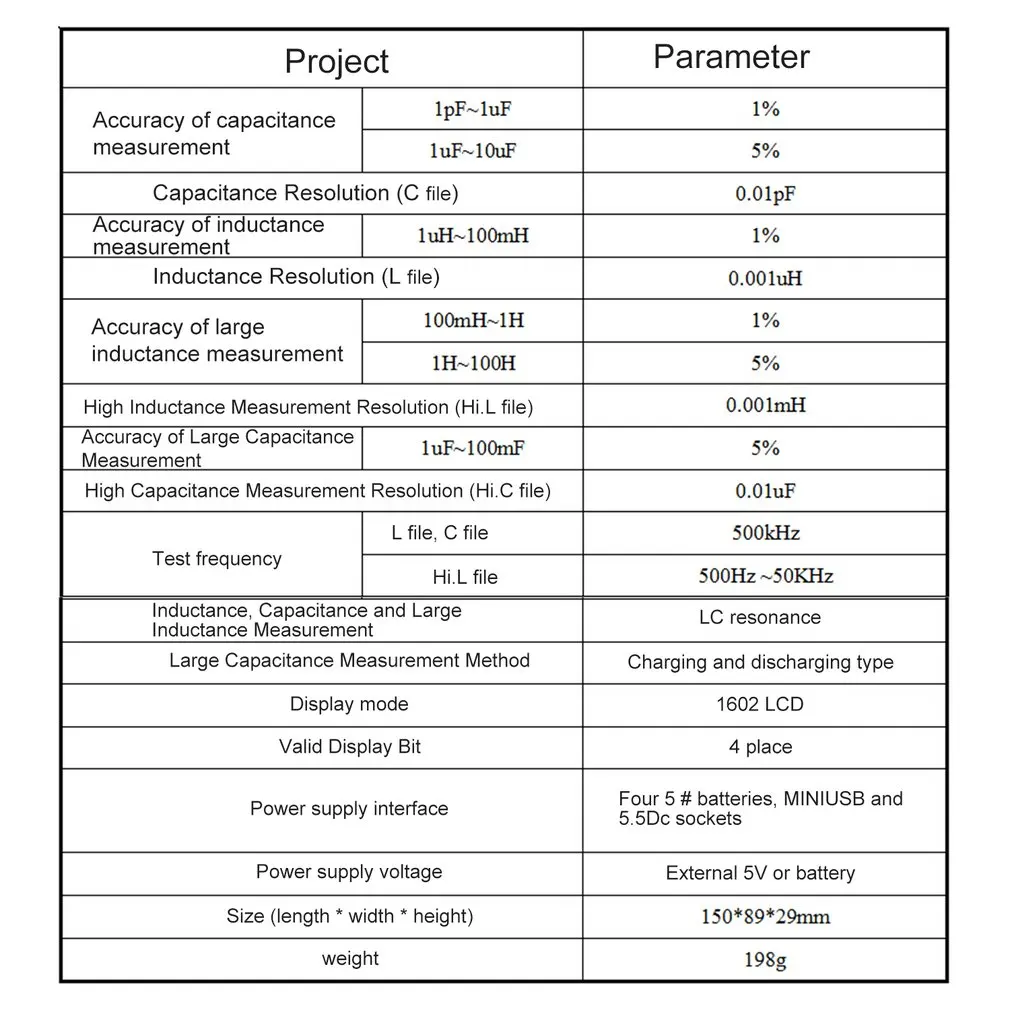

| Capacitance accuracy: | 1%(1pF~1uF), 5%(1uF~10uF) |
| C range: | Capacitance (1pF-10uF) |

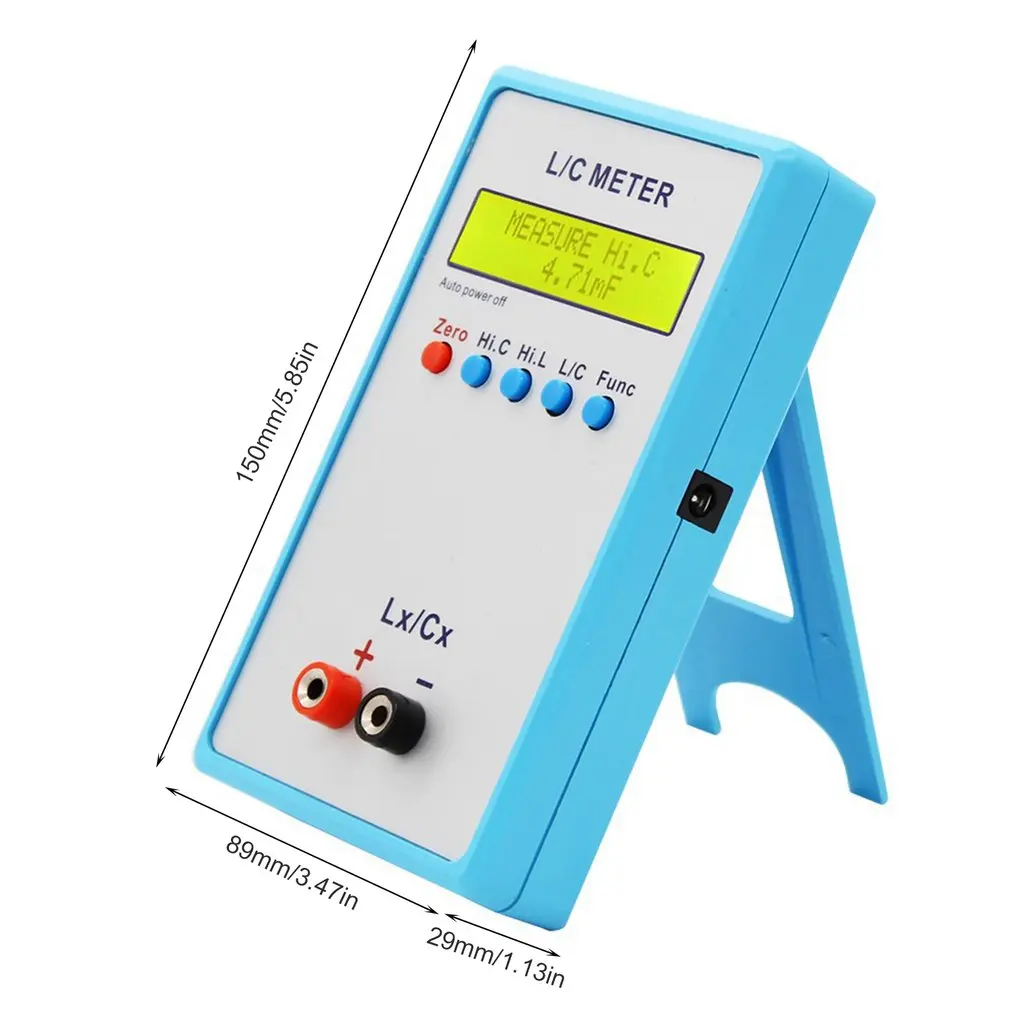

| Dimensions: | 150x89x29mm/5.85x3.47x1.13in |
| Display: | 1602 LCD |
| Effective display digits: | 4 digits |
| Hi.C range: | Large capacitance ,1uF-100mF |
| Hi.L range: | Large inductance (0.001mH-100H) |
| Inductance Accuracy: | 1%(1uH~100mH) |
| Inductance MeasurementL Range: | 0.001uH |
| Interface to power supply: | Please look at the Detail Page |
| Large capacitance accuracy: | 5%(1uF-100mF) |
| Large inductance accuracy: | 1%(100mH~1H),5%(1H~100H) |
| L range: | Inductance (1uH-100mH) |
| Measurement method of large capacitance: | Charge-discharge |
| Model: | LC200A(2) |
| Model Number: | LC200-A inductor capacitor table |
| Supply Voltage: | 5V |
