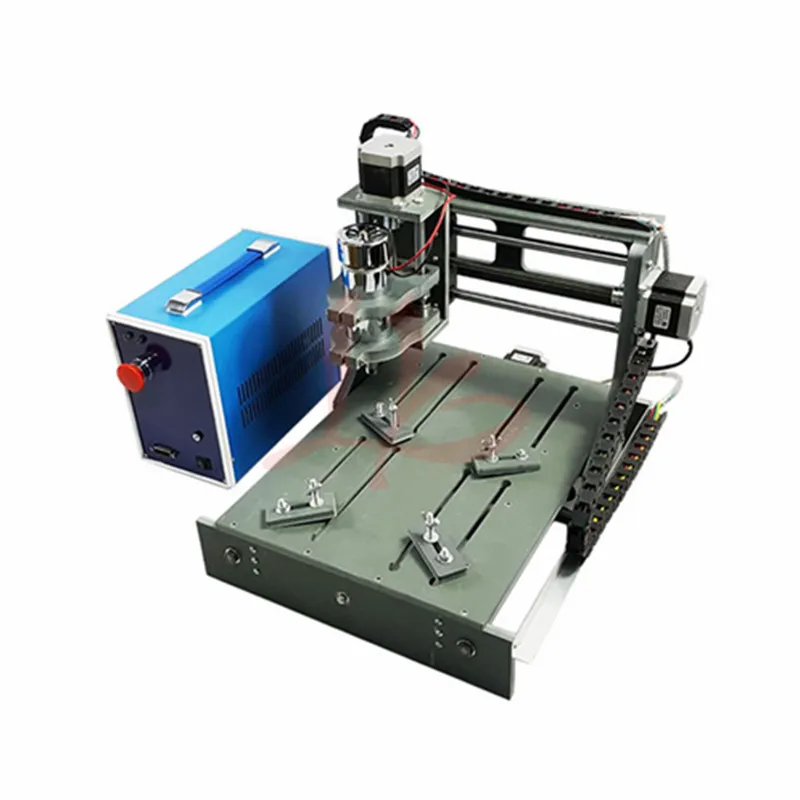

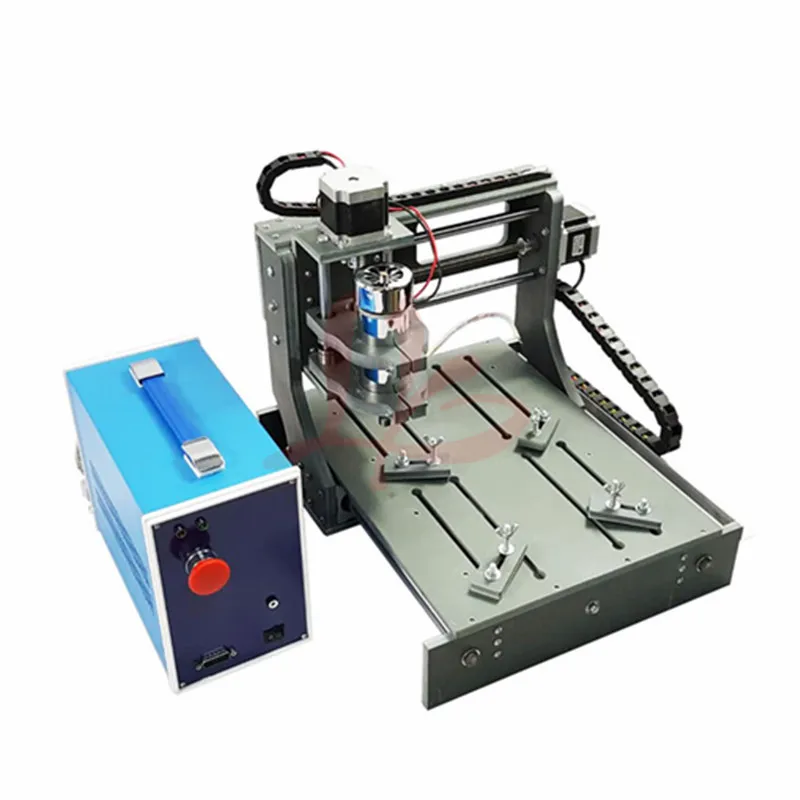

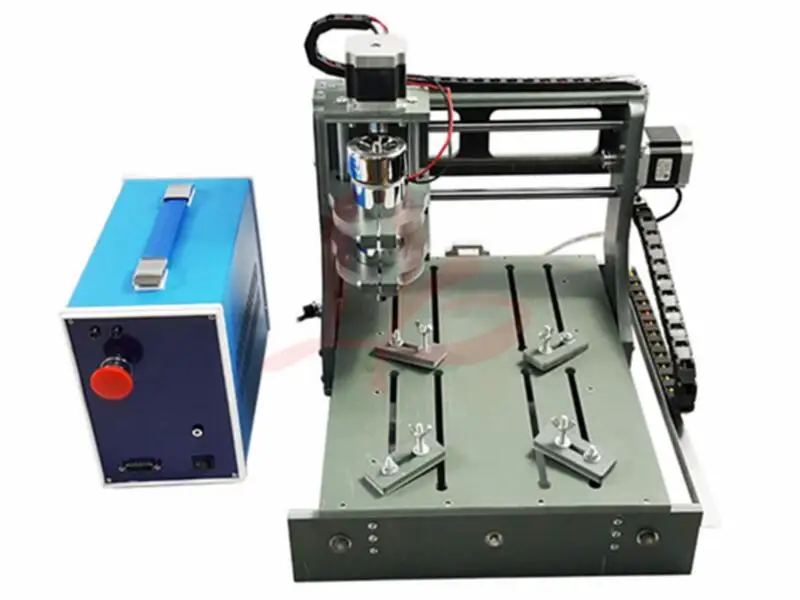

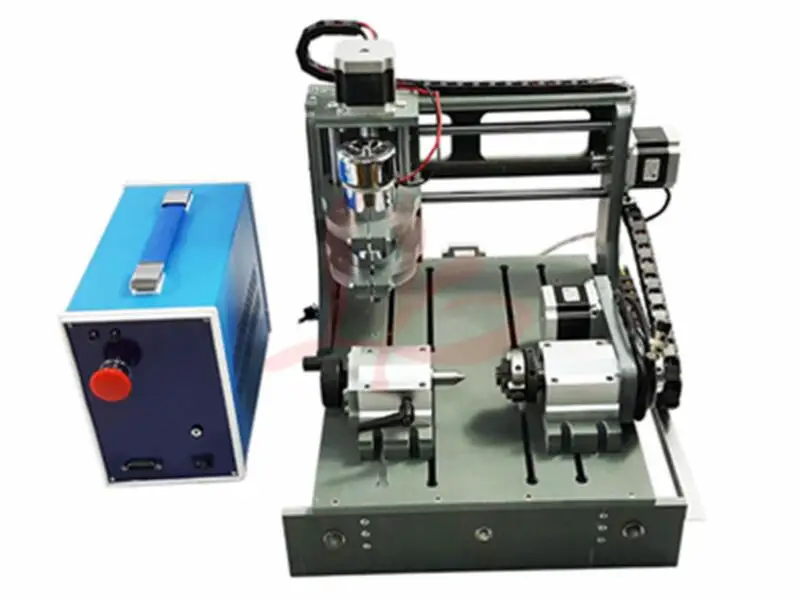

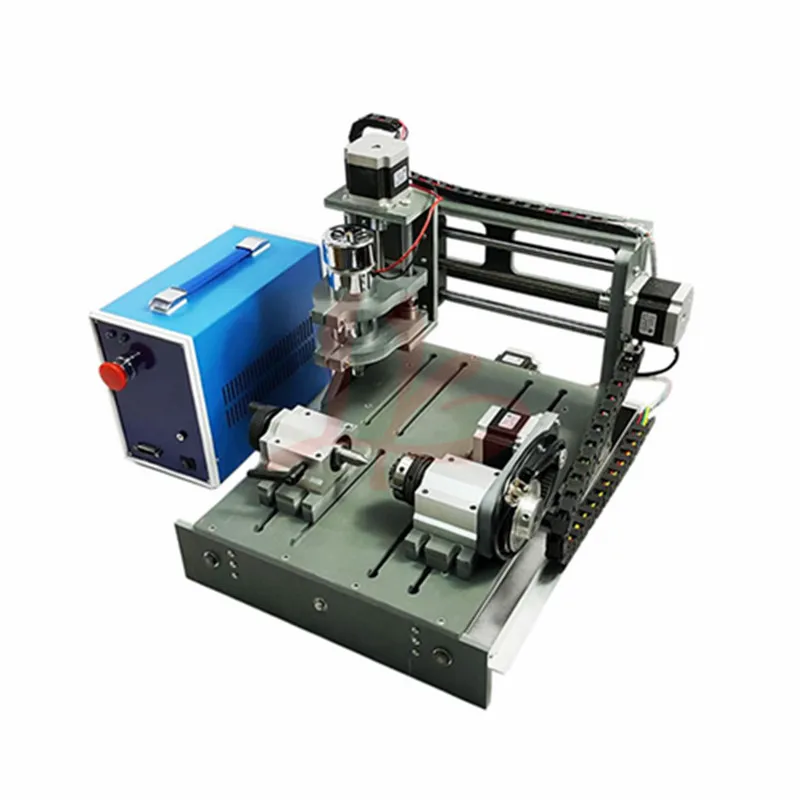

DIY CNC 2030 Parallel Port and USB Port 4 Axis Mini Wood Milling Machine CNC Router with DC Spindle 300W 3.175mm Drill Tip
Technical Details
| Acceptable material thickness: | <80mm |
| CNC or Not: | Normal |
| Collet type: | ER11,1/8"(3.175mm) Collet |
| Command code: | G code/.nc/.ncc/.tab/.txt |
| Communication Interface: | Only LPT or 2 in 1-Parallel port and USB port ( CNCUSBController ) |
| Condition: | New |
| Maximum operating speed: | 2500mm/min (Engraving speed :300-2500mm/min) |
| Max. working stroke: | XYZ=200*300*58mm |
| Model Number: | CNC 2030 machine kit |
| Rail Type: | X and Z axis to hard shaft diameter of 12 mm, Y axis is hard shaft di |
| Repeat positioning accuracy: | 0.03mm |
| spindle motor: | 300W DC spindle , 0-11000r/min |
| Stepper motor and drive: | 57BYGH-2.4A, |
