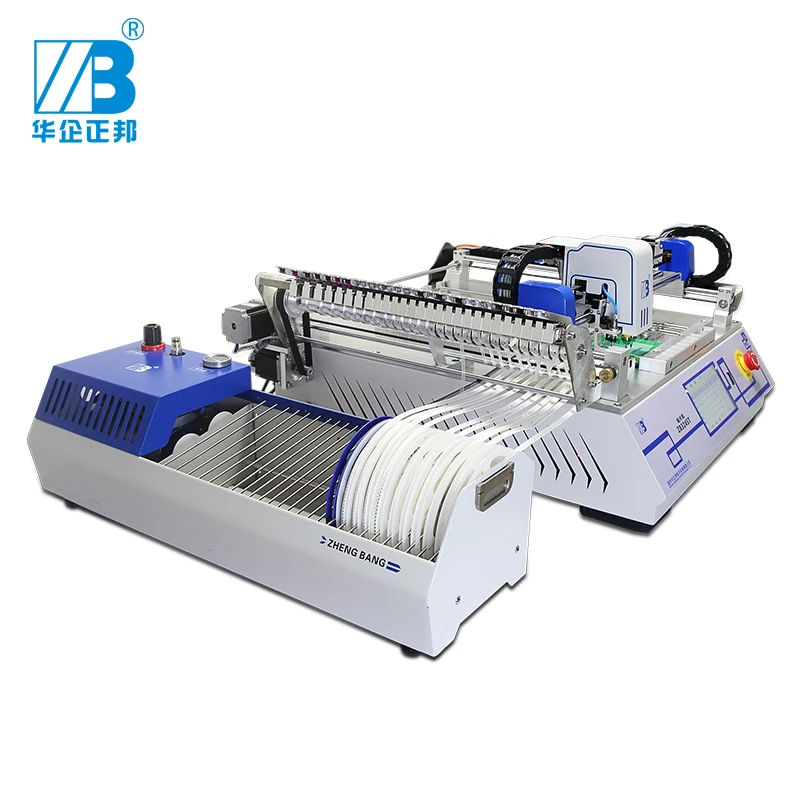

Automatic SMT LED desktop Pick and Place Machine High Precision Pick Place Machine
sku: 4000202945407
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$1,989.00
Shipping from: China
Technical Details
| Air Pressure: | 0.4Mpa |
| Application: | for LED production line |
| Brand Name: | HUAQIZHENGBANG |
| Gross Weight: | 83kg |
| Main engine outline size: | L800*W780*H380mm |
| Materials feeder outline size: | L235*W700*H245mm |
| MM: | 4pcs |
| Model: | ZB3245T |
| Model Number: | ZB3245T |
| Mounting Angle: | 0~360° |
| Mounting numbers: | 2pcs |
| Mounting precision: | 0.05mm |
| Net Weight: | 56kg |
| Normal SMT: | 5000pcs/h |
| Nozzle type: | Juki series nozzle |
| operation software: | Embedded HRM system |
| PCB maximum Size: | 320*450mm |
| PCB minimal size: | 10*10mm |
| PCB Thickness: | ≤2mm |
| Power: | 150w |
| Power Supply: | AC220V±10% 50Hz |
| Preposition IC material level: | 8pcs |
| Program Method: | Researching and development independently |
| Storage: | 8G (Kingston SD card) |
| Theoretical Speed: | 6500pcs/h |
| Tubular materials feeder: | ZhengBang dedicated Five tubular materials feeder one (optional) |
| Vacuity degree: | -92kpa |
| X/Y axis moving range: | 410*490mm |
| Z axis moving range: | 10mm |
| Z axis rotation angle: | 0~360° |
