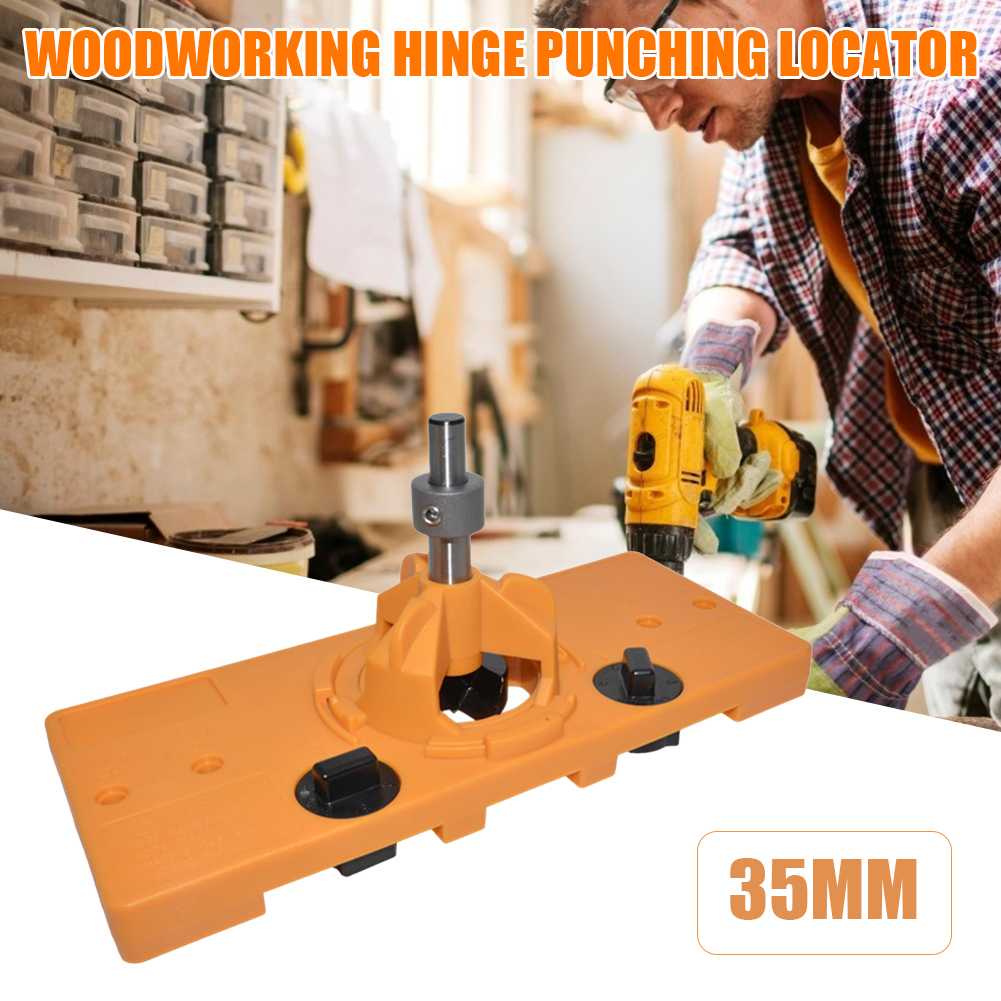

35mm Hinge Drilling Jig Concealed Guide Hinge Hole Locator Woodworking Tool, 501 Original

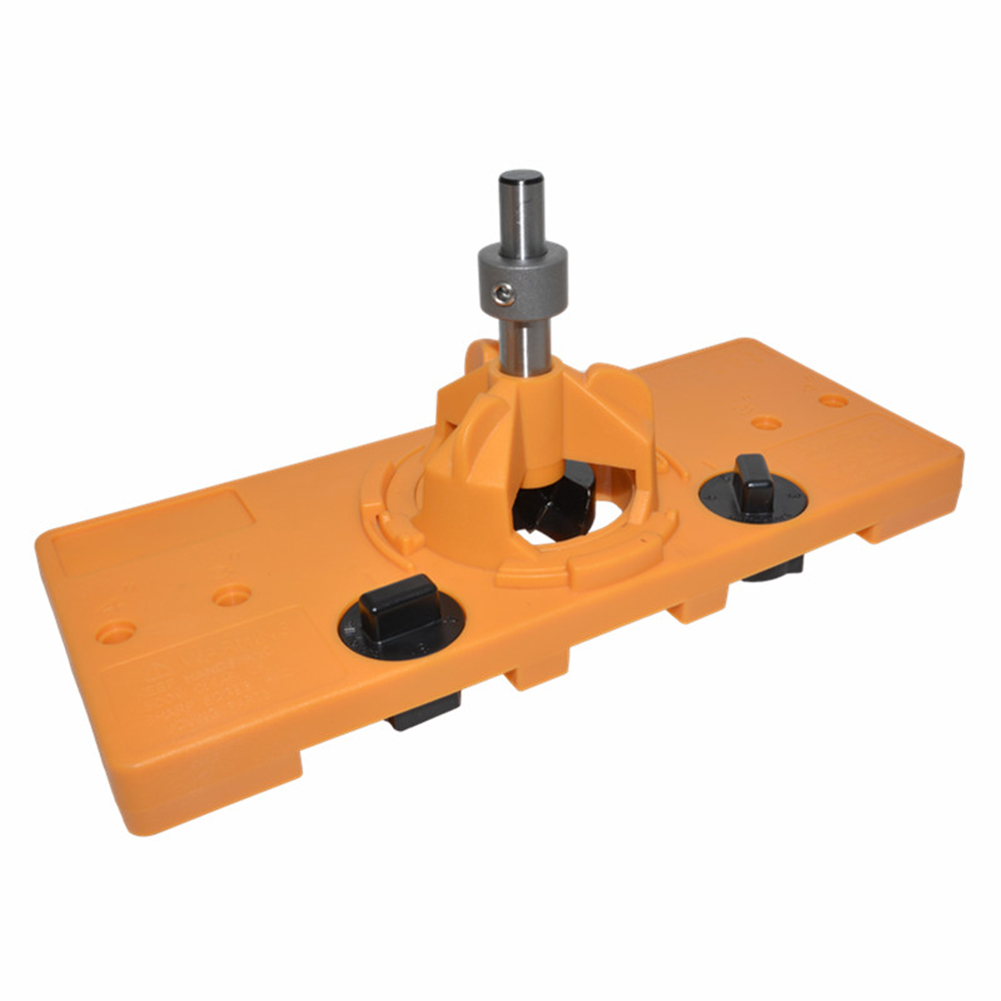

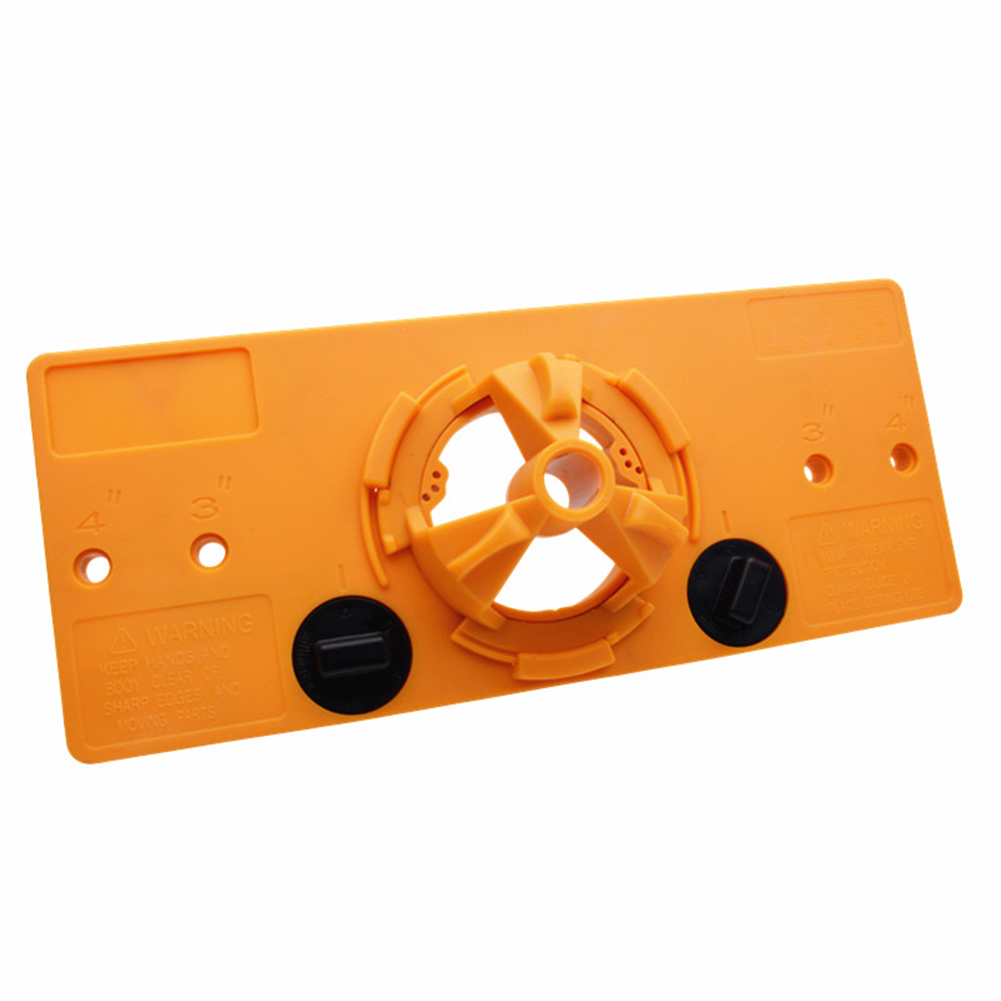

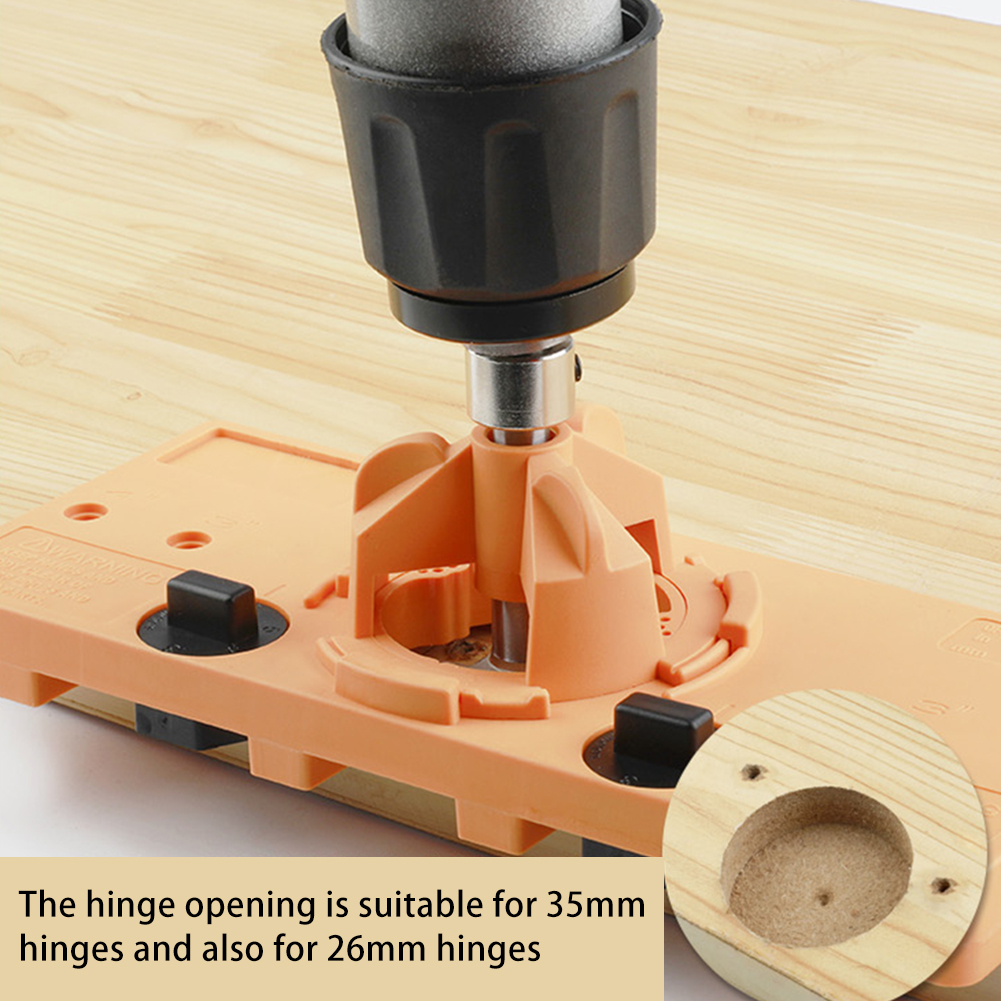

35mm Hinge Drilling Jig Concealed Guide Hinge Hole Locator Woodworking Hole Opener Door Cabinet Accessories ToolFeature:Hinge openings are available for 35mm hinges or 26mm hinges.This punch temporarily supports 46-47-48-52 mounting screw hole.It is easy to use and can be operated by non professionals.It is more convenient to use with a variety of accessories such as tapper.Blue Locator Feature:1. Fast hinge mounting fixture. Hinge guide drill can help you quickly drill the perfect hidden hinge hole, suitable for furniture door cabinet hinge positioning installation.2. 35mm reaming saw fixture. ABS plastic hinge bag hole clamp, light and easy to operate.Specification:Suitable hinge size: 35mm/1.37\\'\\'Material: engineering plastic + metalPackage size: 255 * 110 * 65mm/10.03*4.33*2.55\\'\\'Usage Steps:1. Determine the position of the hinge cup, with the short plate upward, fix the screw on the edge of the plate, and drill the hinge cup hole.2. Draw the corresponding center line on the other plate, with the short plate facing down, the middle line aligned with the inverted triangle, and drill the positioning hole of the hinge seat.3. Install the hinge.Warm Tips:Keep hands and body away from sharp edges and moving parts.Always wear eye protection.During use, clamp the guide rail in place.Note: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!2. Please allow 1-2cm measuring deviation due to manual measurement.Package Content:1 Set X Hinge Drilling Jig Guide
