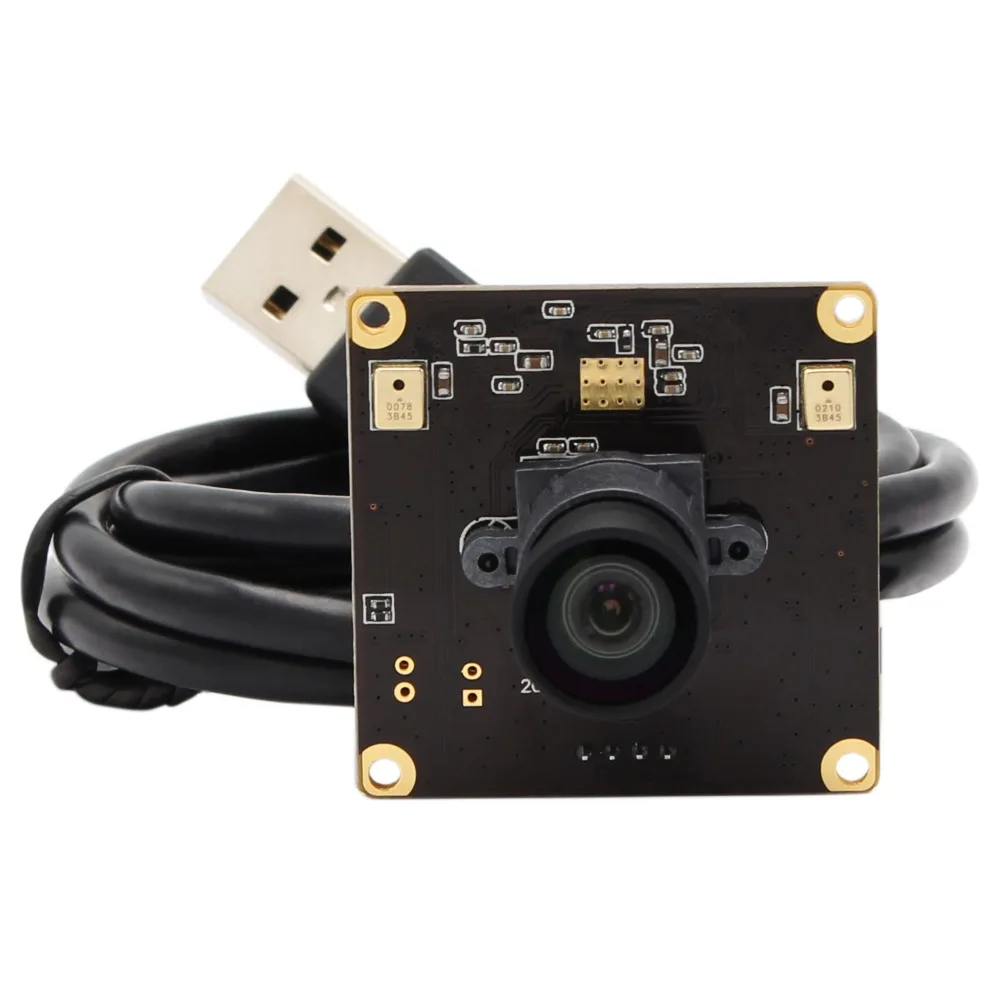

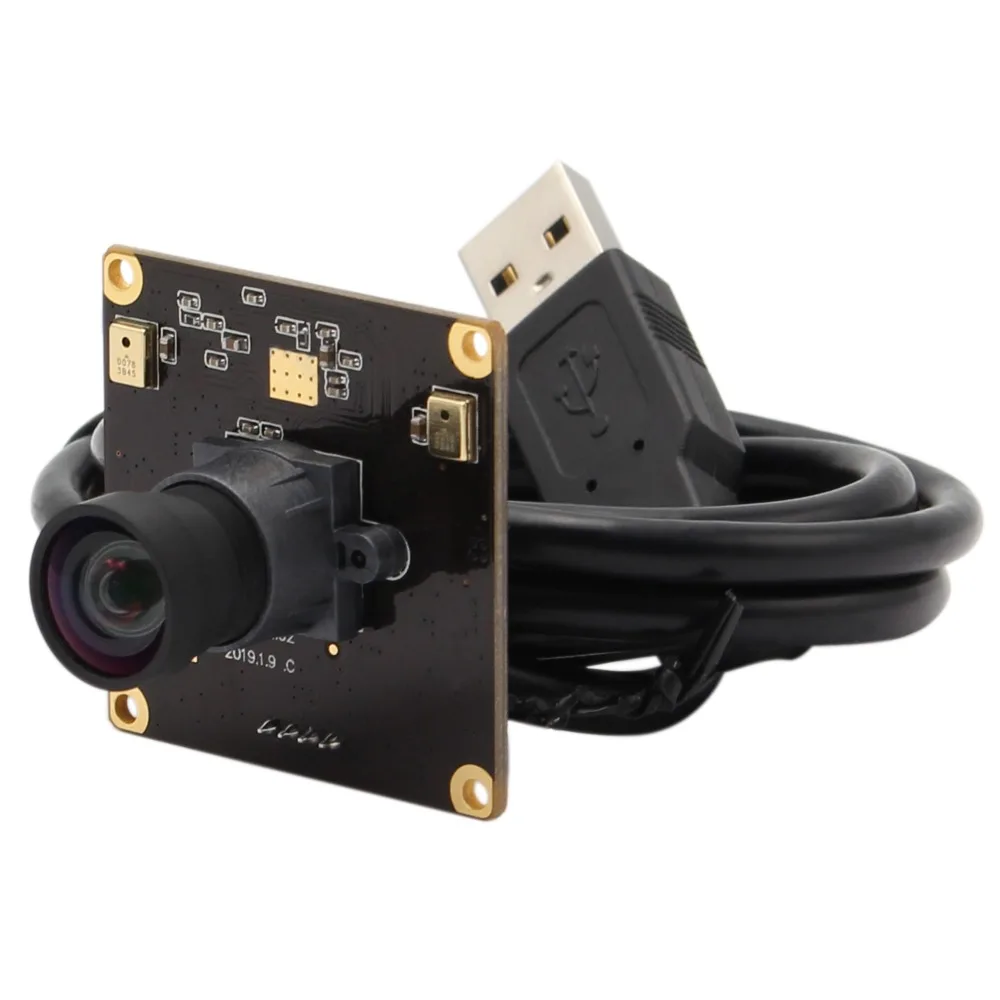

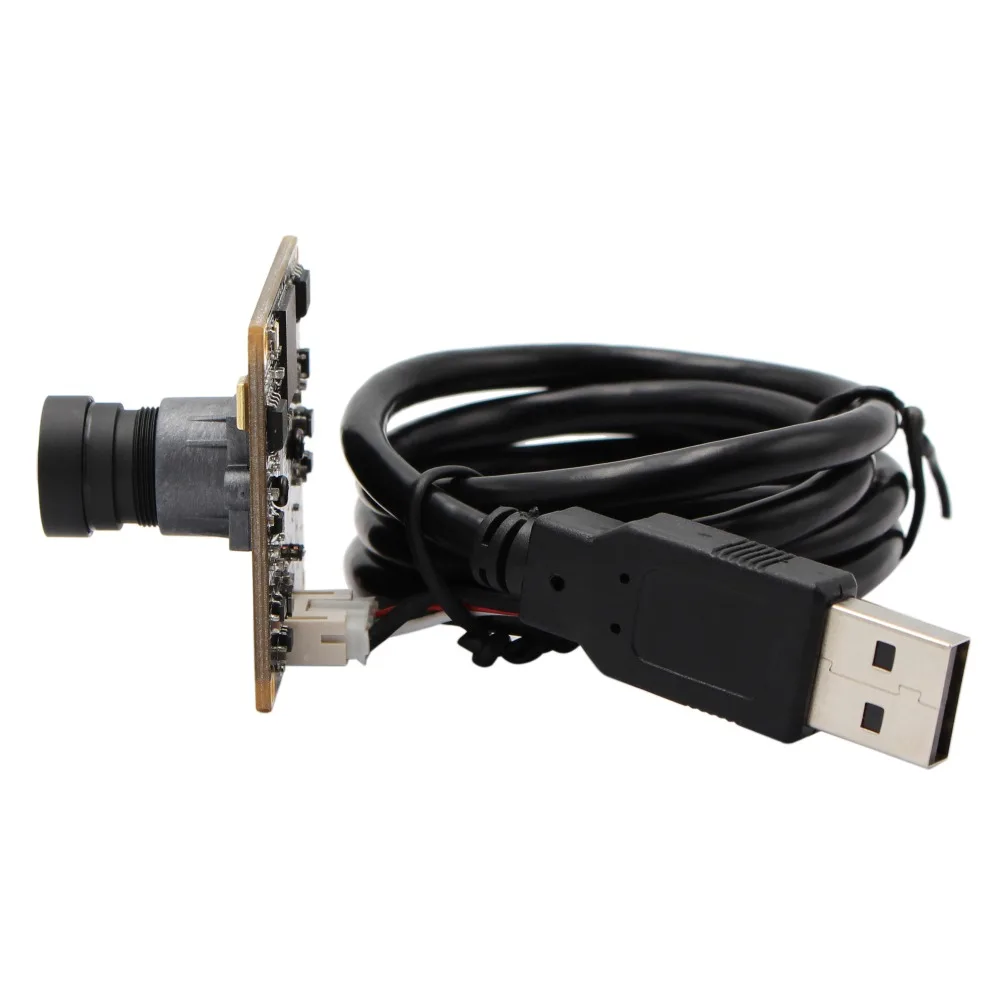

13MP 3840*2880 High Resolution USB2.0 Camera Module SONY IMX214 CMOS fixed foucs USB Camera Module for document scanner
sku: 32990220518
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$92.03
Shipping from: China
Technical Details
| Audio Output: | None |
| Brand Name: | ELP |
| Color: | Black,Blue |
| Connectivity: | USB |
| Dimensions L x W x Dmm: | 38*38mm board |
| Focus: | Fixed focus |
| High Definition: | 12.0 Megapixels |
| Installation: | Normal |
| Interface: | USB 2.0 High Speed |
| IR Distancem: | 0 |
| is customized: | Yes |
| Lens mm: | 75degree no distortion lens |
| Lens Parameter: | No distortion lens |
| Max resolution: | 3840(H) *2880 (V) 13MP |
| Minimum IlluminationLux: | 0.5 lux |
| Model Number: | ELP-USB13MP02 |
| Network Interface: | None |
| Object distance: | 8CM-100M |
| Operating system request: | Windows, Linux with UVC(above linux-2.6.26)MAC ,Android |
| Output Formats: | MJPEG&YUYV |
| Power ConsumptionW: | 220mW |
| Power Supply: | USB BUS POWER 4P-2.0mm socket |
| Power SupplyV: | 5V |
| Sensor: | IMX214 (1/3 ) |
| Sensor Brand: | SONY |
| Special Features: | 13MP High resolution |
| Storage: | None |
| Style: | Mini Camera |
| Supported Operating Systems: | Windows 10,Windows Vista,Windows 8,Windows 7,Windows 98,Mac os,Windows XP |
| Technology: | usb camera |
| TF Card: | None |
| Type: | usb camera module |
| usb cable: | 1M cable, other cable need customize |
| Video Compression Format: | MJPEG |
| View Angle FOV: | About 60-70degree ( depends on different resolution) |
| Viewing Angle Degree: | 70° |
